Field extension quickstart

#Introduction

A UI extension is a web app inside Hygraph. They allow you to add custom components in the content editor.

You can build any UI component, like basic inputs, image pickers, and conditional fields.

The sky is the limit.

#What you will build

The demo UI extension we will be building is the Hello UIX World. It's a basic input field to store text data.

You will also learn how to add custom settings, like an API Key to connect to a 3rd party service provider.

#Prerequisites

To complete this tutorial:

You need the latest LTS version of Node.js installed on your machine. If you don't have it, you can download it here
You should be comfortable using a command line tool and any IDE or text editor of your choice
You should be familiar with JavaScript and React
You need a free Hygraph account and a project. You can signup here.

If you're new to Hygraph, create a project using the Blog Starter template

#What you will learn

In this tutorial, you will learn:

How to create a UI Extension
How to run and test the UI Extension on your local development environment
How to add the UI Extension to a Model
How to add custom settings to your UI Extension, like an API Key
How to deploy your UI Extension to Vercel
How to install and use your UI Extension in production
(Bonus) How to display data into table content view

#Step 1: Creating a UI extension

1. Create React project

# create a project with npm
npx create-react-app hello-uix-guide

# change directory
cd hello-uix-guide

Now, open the project in the code editor of your preference.

2. Create a new React component

// src/extensions/HelloUixWorld.js

import { useState, useEffect } from 'react';

const MyField = () => {
  const [localValue, setLocalValue] = useState('');

  useEffect(() => {
    // Will be used soon
  }, [localValue]);

  return (
    <input value={localValue} onChange={(e) => setLocalValue(e.target.val)} />
  );
};

const HelloUixWorld = () => {
  return <MyField />;
};

export default HelloUixWorld;

3. Import the component into your app

// src/App.js

import HelloUixWorld from './extensions/HelloUixWorld';

function App() {
  return <HelloUixWorld />;
}

export default App;

You can replace all content of App.js with the code above

4. Run the app locally

npm run start

By visiting http://localhost:3000 on your browser, you should see a very basic HTML input field.

Now, let's transform it into a Hygraph UI Extension!

#Step 2: Using Hygraph React SDK

1. Installing the React SDK

In order to transform it into a UI Extension, you must install Hygraph React SDK as a dependency on your project. You can do it running the following command on your Terminal:

yarn add @graphcms/uix-react-sdk

2. Adding React SDK

Now, let's import some SDK components, hooks and enumerations from Hygraph SDK.

Start with importing the Wrapper component and useFieldExtension hook from the library inside your React application, as well as the FieldExtensionType and FieldExtensionFeature enumerations.

You should add the following code at the top of the HelloUixWorld.js file. Remember to import useEffect hook at the top.

// src/extensions/HelloUixWorld.js

import { useState, useEffect } from 'react';

import {
  Wrapper,
  useFieldExtension,
  FieldExtensionType,
  FieldExtensionFeature,
} from '@graphcms/uix-react-sdk';

Then, add useFieldExtension hook into MyField and adjust the code accordingly, like the following example:

const MyField = () => {
  const { value, onChange } = useFieldExtension();
  const [localValue, setLocalValue] = useState(value || '');

  useEffect(() => {
    onChange(localValue);
  }, [localValue, onChange]);

  return (
    <input value={localValue} onChange={(e) => setLocalValue(e.target.value)} />
  );
};

Then, we need to add the extension declaration:

const declaration = {
  extensionType: 'field',
  fieldType: FieldExtensionType.STRING,
  features: [FieldExtensionFeature.FieldRenderer],
  name: 'Hello UIX World',
};

Finally, let's wrap our custom input field with the Wrapper component:

const HelloUixWorld = () => {
  return (
    <Wrapper declaration={declaration}>
      <MyField />
    </Wrapper>
  );
};

Your complete custom UI Extension code should look like this:

// src/extensions/HellowUixWorld.js

import { useState, useEffect } from 'react';

import {
  Wrapper,
  useFieldExtension,
  FieldExtensionType,
  FieldExtensionFeature,
} from '@graphcms/uix-react-sdk';

const MyField = () => {
  const { value, onChange } = useFieldExtension();
  const [localValue, setLocalValue] = useState(value || '');

  useEffect(() => {
    onChange(localValue);
  }, [localValue, onChange]);

  return (
    <input value={localValue} onChange={(e) => setLocalValue(e.target.value)} />
  );
};

const declaration = {
  extensionType: 'field',
  fieldType: FieldExtensionType.STRING,
  features: [FieldExtensionFeature.FieldRenderer],
  name: 'Hello UIX World',
};

const HelloUixWorld = () => {
  return (
    <Wrapper declaration={declaration}>
      <MyField />
    </Wrapper>
  );
};

export default HelloUixWorld;

3. Testing UI extension on Localhost

At this point, you should see the "SDK connection error, check logs" message in your browser. The reason is that it's expected to be running from Hygraph application. So, you should just ignore this message.

Now, let's install and test your new UI Extension on localhost by following these steps:

Go to https://app.hygraph.com and open any existing project

If you don't have a project yet, use the Blog starter
Navigate to Project Settings > UI Extensions
Click on Add UI Extension button
On Extension URL field, enter http://localhost:3000
Click on Run compatibility test button
Finally, fill in your custom UI Extension name and description, and click on Authorize & Install.

If everything went well, you should see something like this:

UI Extension Install

#Step 3: Adding custom UI extension to a model

Now, it's time to use your new UI Extension.

Follow these steps:

Go to Schema
On the left, click on the model you want to add the new UI Extension
On the right, you should see your new UI Extension under Strings fields
Click on your UI Extension to add it into the model
Enter some information like Display Name, API ID, etc
When you're ready, click on Create button

#Step 4: Using your custom UI extension

On the left navigation, go to Content
Select the model you've added the UI extension in the previous step
Click on Create Item button on the top right corner or Edit and existing one
Enter some text into the field and click on Save

You can see your new data on API Playground

#Step 5: Adding custom settings to a UI extension

Let's say you are building a UI Extension that needs an API Key and you want to prompt user to enter this information during the installation process.

You can do it by adding the config property to the extension declaration:

On your Code Editor, open HelloUixWorld.js file
Add the following code into const declaration and save the file

// src/extensions/HelloUixWorld.js

const declaration = {
  extensionType: 'field',
  fieldType: FieldExtensionType.STRING,
  features: [FieldExtensionFeature.FieldRenderer],
  name: 'Hello UIX World',
  config: {
    API_KEY: {
      type: 'string',
      displayName: 'API Key',
      description: 'API Key for this UI Extension',
      required: true,
    },
  },
};

Go back to your browser and open your project dashboard
Go to Project Settings > UI Extension
On Hello UIX World, click on the three dots and then click on Edit
Click Refresh next to the Edit button

Now, you should see the new API Key field. Once it's a required one, enter any text and hit the Update button.

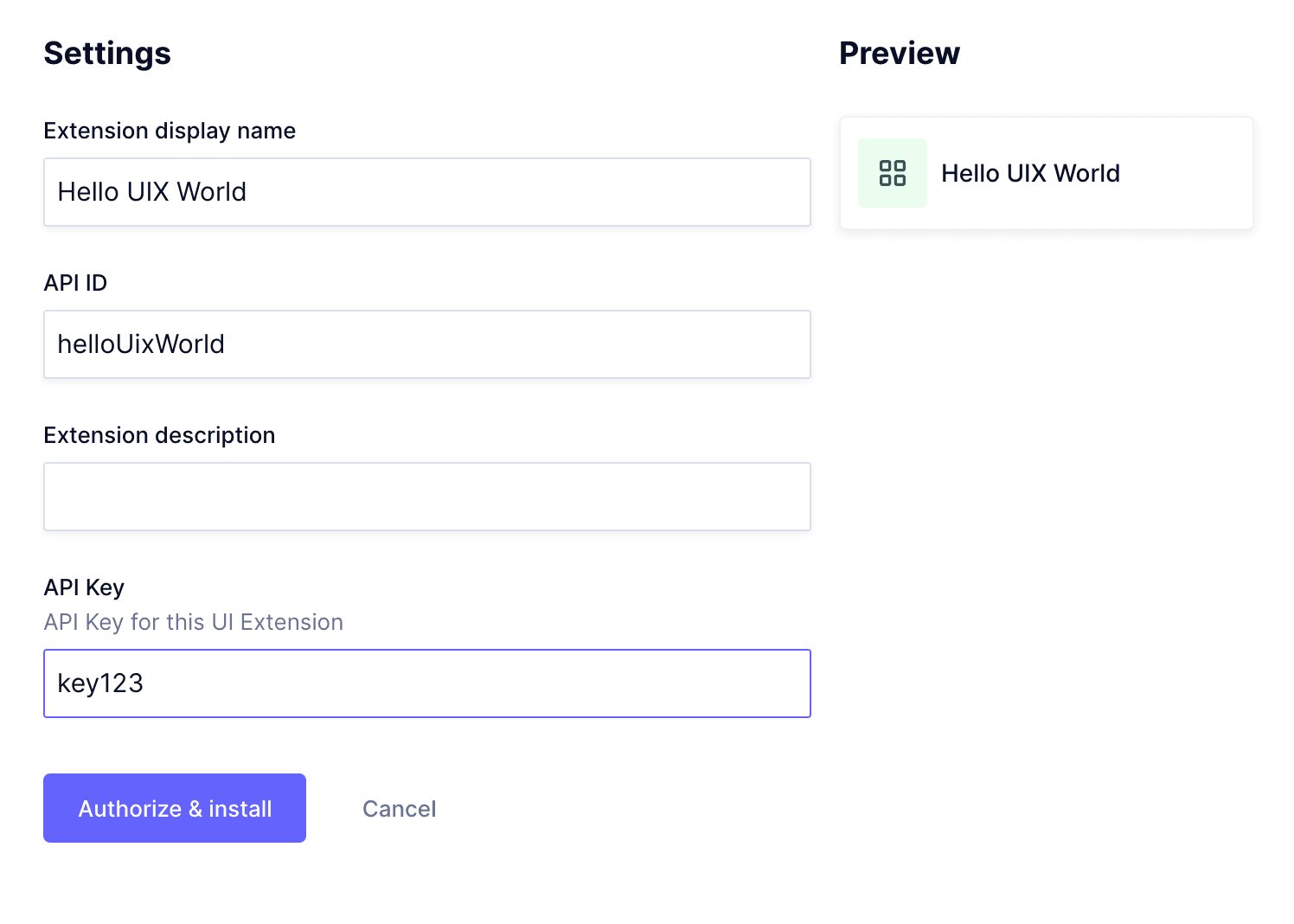

UI Extension Custom Settings

#Step 6: Deploying your UI extension

To use your UI Extension in a live website or application, you should host it somewhere on the internet. For the sake of this tutorial, we will deploy it on Vercel. But you can use any hosting service.

Do the following steps:

Open your Terminal
Navigate into your project root directory and run npx vercel

cd hello-uix-world
npx vercel

Follow the step-by-step guide on your Terminal
Once it's deployed, the extension URL will be automatically copied to your clipboard
Open your project dashboard on your browser
Go to Project Settings > UI Extension
On Hello UIX World, click on the three dots, then click on Edit
Click on Edit button next to the Extension URL field
Replace Extension URL field with the new URL
Click on the OK button
Finally, click on the Update button

#Bonus Step: Displaying the data in content table view

Let's say you want to display the data stored in your custom UI extension field in the content table view.

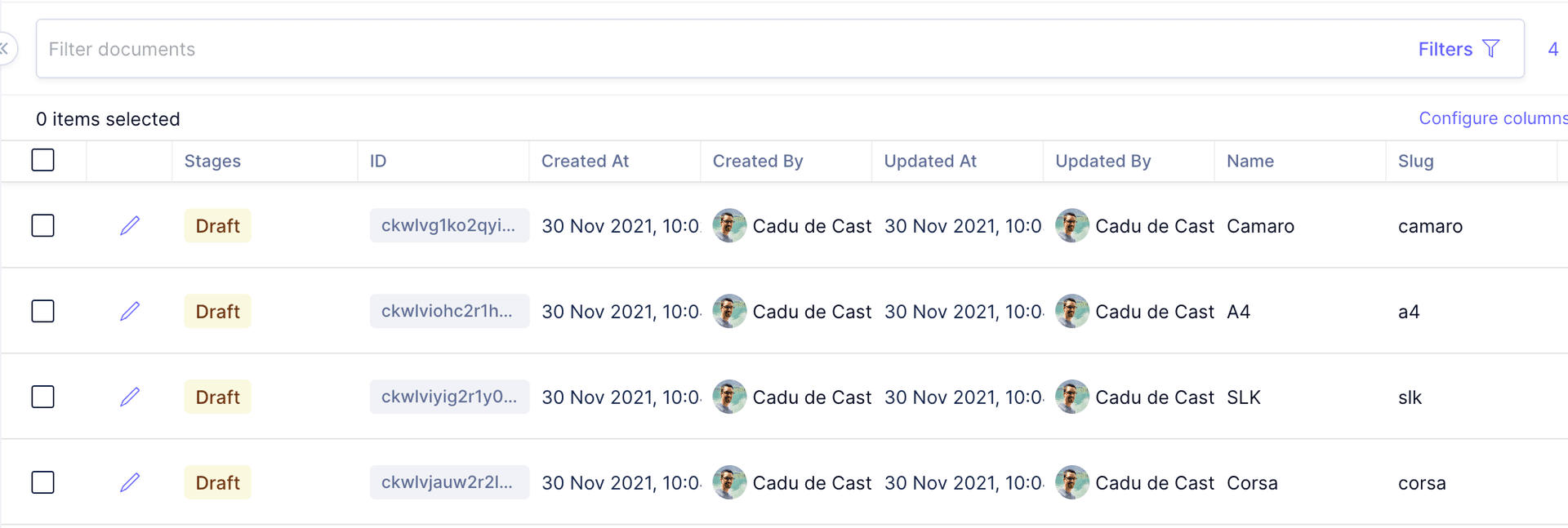

UI Extension Table Renderer

To enable custom table-cell rendering in your app, add FieldExtensionFeature.TableRenderer to the features array in the extension declaration:

// src/extensions/HelloUixWorld.js

const declaration = {
  extensionType: 'field',
  fieldType: FieldExtensionType.STRING,
  features: [
    FieldExtensionFeature.FieldRenderer,
    FieldExtensionFeature.TableRenderer, // Enables custom table-cell rendering
  ],
  name: 'Hello UIX World',
  config: {
    API_KEY: {
      type: 'string',
      displayName: 'API Key',
      description: 'API Key for this UI Extension',
      required: true,
    },
  },
};

UI extensions declaration must be re-loaded every time the declaration changes.

The SDK provides a isTableCell boolean that you can use to detect that the current extension instance is rendered in the content table.

Therefore, change MyField() method like the following code:

// src/extensions/HelloUixWorld.js

const MyField = () => {
  const { value, onChange, isTableCell } = useFieldExtension();
  const [localValue, setLocalValue] = useState(value || '');

  useEffect(() => {
    // onChange doesn't works on table cell
    if (!isTableCell) {
      onChange(localValue);
    }
  }, [localValue, onChange, isTableCell]);

  // Display value in the table content
  if (isTableCell) {
    return <p>{value}</p>;
  }

  return (
    <input value={localValue} onChange={(e) => setLocalValue(e.target.value)} />
  );
};

#Congratulations!

You've just learned how to build custom UI Extensions for Hygraph!

Take a look into these UI extensions examples for inspiration.
