Simple navigation

#Overview

This guide shows how to build a simple navigation using a slug field and components.

Our simple navigation will be a content model containing an ID and component field that allows multiple values. This way, to create a navigation using this configuration, you can create a content entry with its own ID, and as many navigation links as you need.

Use this simple model to create a basic navigation containing labelled navigation items that can link to both internal and external documents.

Simple navigationSimple navigation

#Core concepts

In this guide, you'll work with references, components and basic component fields. Let's look into these concepts:

  • Component: a pre-defined set of fields that can be reused across models and content entries. You can think of a component as a flexible, reusable template: you define the fields that will be used inside a component once, and then fill them with different content every time you use it in a content entry.

  • Basic component field: a component is a special field type in your Hygraph schema that defines which components of which type can be used in a model. Component fields can be of basic or modular types. A basic component field can only have one component attached to it. You can limit the number of component instances to one, or allow multiple component instances to be added in the content entry.

  • References: References are relations between two or more content entries in your project. With references, you can reuse content entries by connecting them. Once the relation is configured, you can also use it to create related content from the content creation screen.

#What you can do

This guide offers two paths:

  • Path 1: Use this guide to create a simple navigation that you can use in your Hygraph projects.
  • Path 2: Clone the project that contains the entire Navigation cookbook to compare the different navigation configurations without having to clone multiple projects.

#Step-by-step guide

Before we can build our Simple Navigation model, we need to create other schema elements that we can later add to it.

To make this guide easier to follow, we've divided it in steps for you.

#1. Create models

We'll start by creating three sample models - Product, Store, and Blog - that we will use as referenceable models later to create our navigation items.

We'll click + Add next to Models and use the following information:

FieldInput
Display NameProduct
API IDProduct
API ID PluralProducts

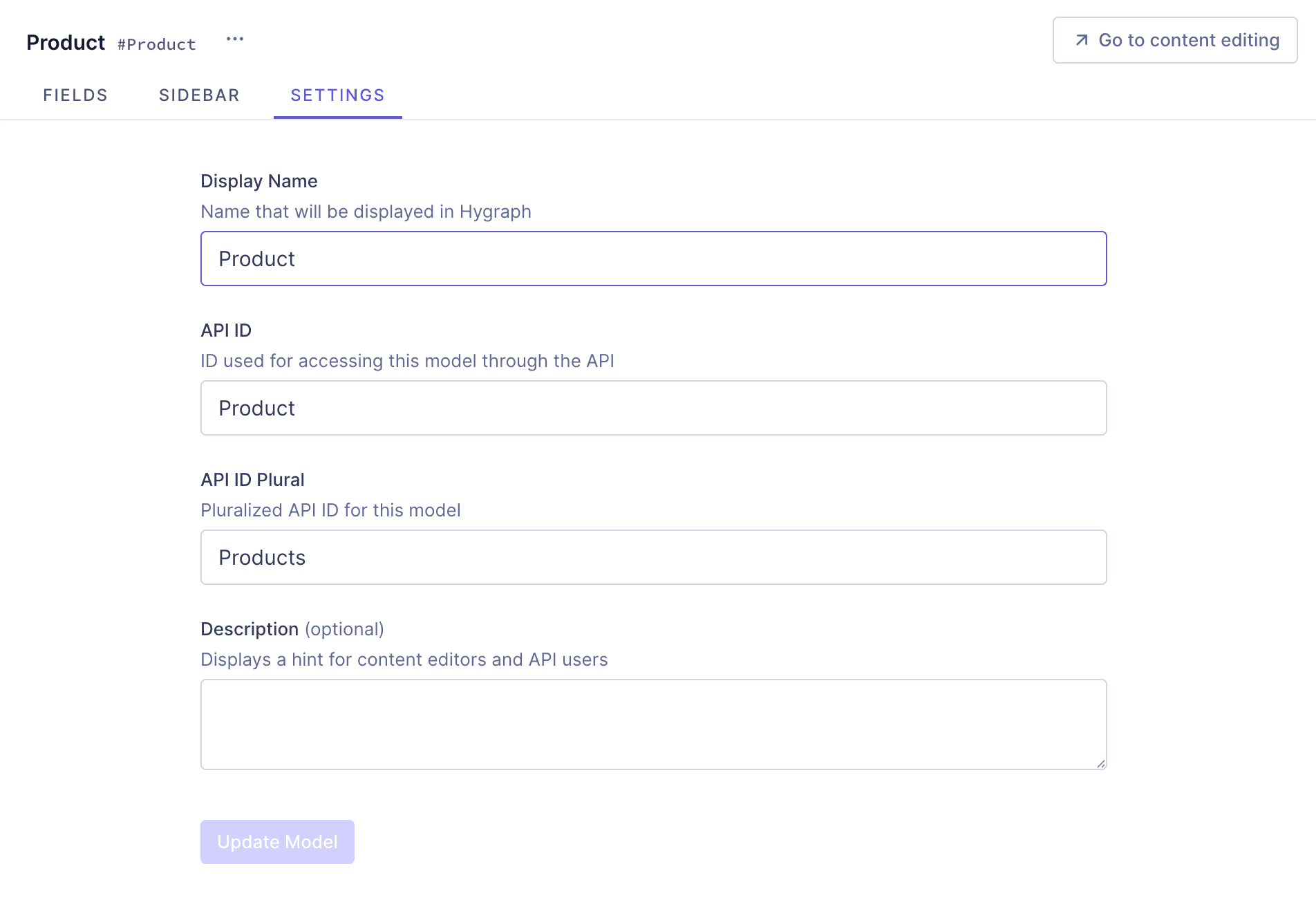

Create modelsCreate models

We'll click Add Model to save.

Normally, we'd add fields to these models, but for the sake of this example, we'll simply leave them empty.

Repeat the process to create a second model:

FieldInput
Display NameBlog
API IDBlog
API ID PluralBlogs

We'll click Add Model to save.

And one final time for our third model:

FieldInput
Display NameStore
API IDStore
API ID PluralStores

We'll click Add Model to save.

Finally, we will create one more model for our simple Navigation, using the following information:

FieldInput
Display NameSimple navigation
API IDSimpleNavigation
API ID PluralSimpleNavigations

We'll click Add Model to save. This model won't stay empty, but before we can add fields to it, we need to build a component.

We want our navigation to contain a link component that will allow us to add multiple links to our navigation. We'll click + Add next to Components and add it using this information:

FieldInput
Display NameLink
API IDLink
API ID PluralLinks

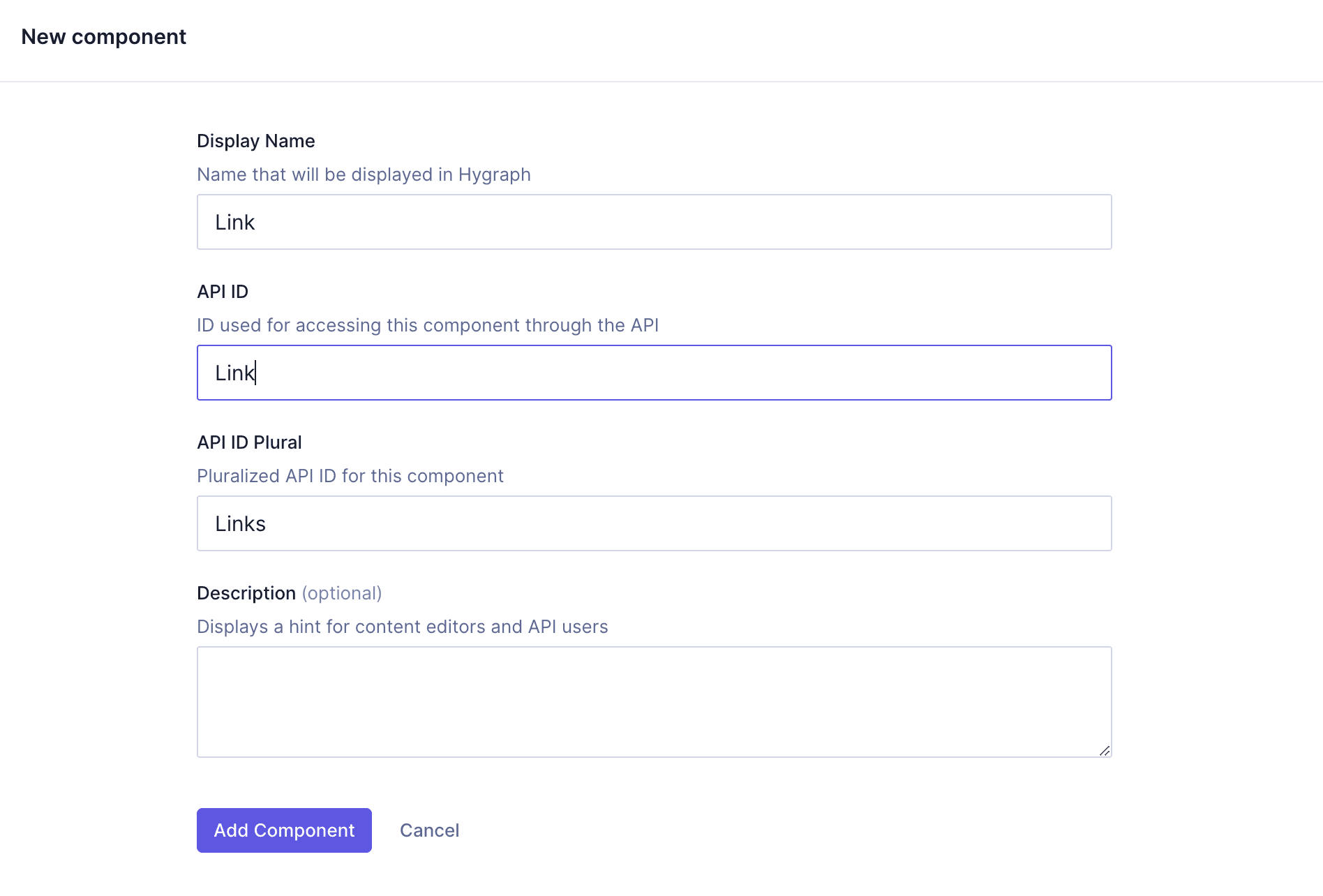

Create a link componentCreate a link component

We'll click Add component to save. It's time to start adding instances to this component.

First, we'll add a Single line text field by clicking on it on the Add fields right sidebar.

We'll use the following information:

TabFieldInput
SettingsDisplay NameLink label
SettingsAPI IDlinkLabel
SettingsUse as title field checkboxSelect this checkbox

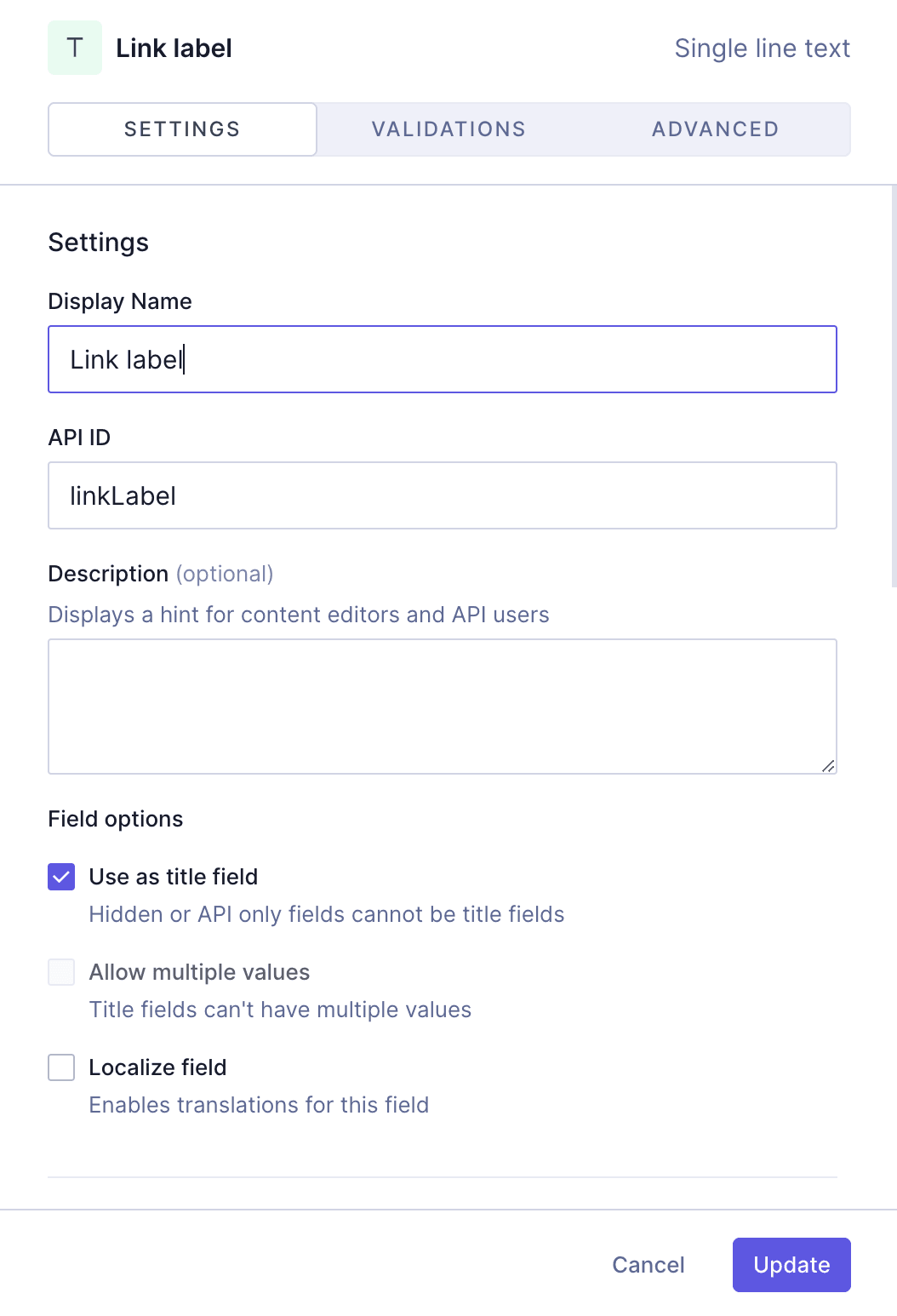

Link component - LabelLink component - Label

We'll click Add to save.

We want our navigation to offer the possibility to add both internal and external links. To do this, we'll add a reference for the internal links, and a slug field for the external ones. In this case, we won't be making them required fields, because users will either use one or the other.

We'll start with the reference field. We'll find the Reference field on the Add fields right sidebar, click on it, and use the following information:

TabFieldInput
DefineReference typeSelect Allow multiple models to be referenced (Union Type)
DefineModels to referenceUse the dropdown menu to select Product, Blog and Store
DefineReference directionSelect One-way reference
DefineRelation cardinalitySelect One to One
Configure referenceDisplay NamePage
Configure referenceAPI IDpage

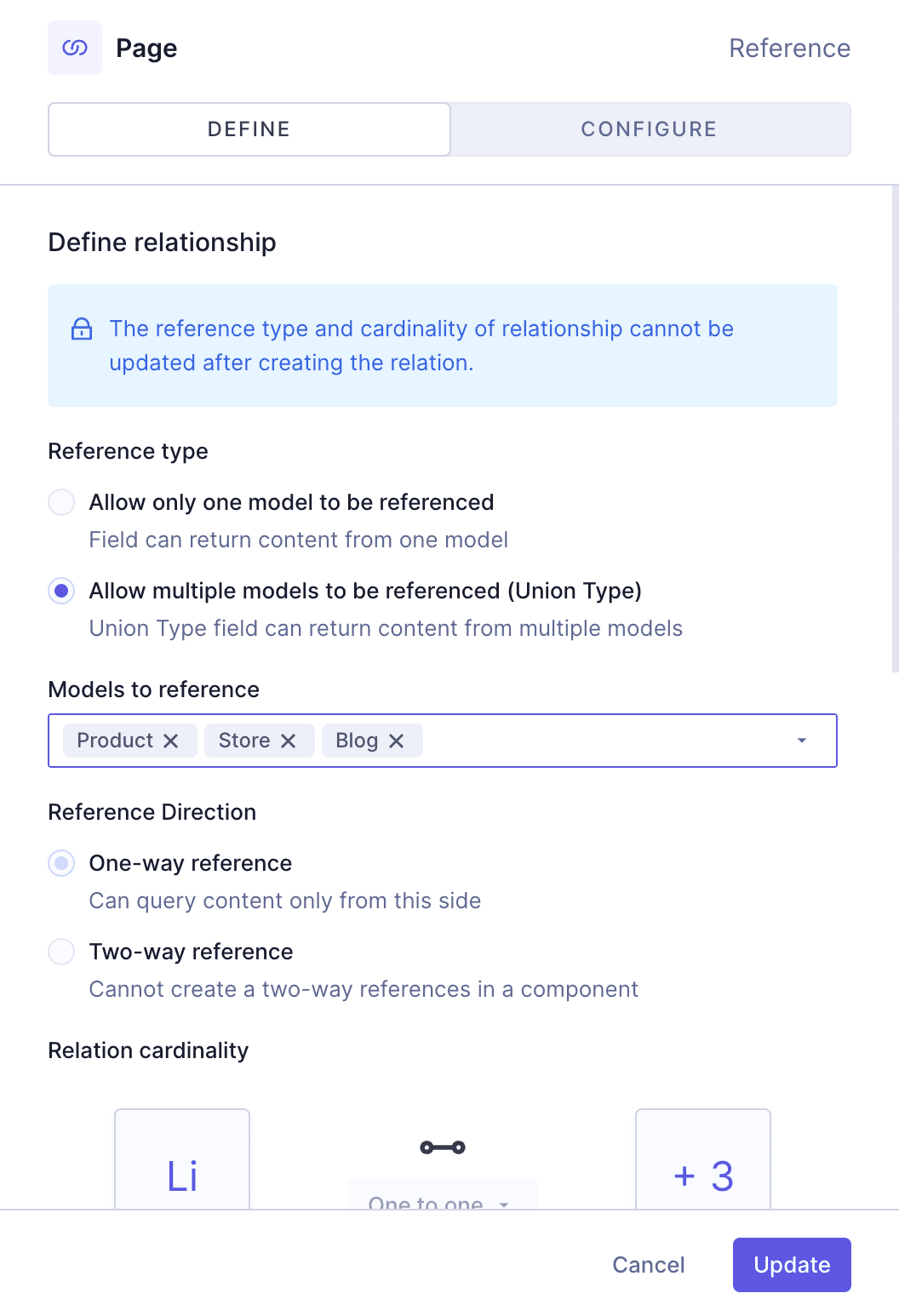

Link component - ReferenceLink component - Reference

We'll click Add to save. We've configured the reference in such a way that when we find this field in a content entry, it will allow us to select an entry from the models that we selected.

Finally, we'll add a slug field for our external URLs, using the following information:

TabFieldInput
SettingsDisplay NameExternal URL
SettingsAPI IDexternalUrl
SettingsLowercase checkboxLeave this checkbox selected
ValidationsSet field as unique checkboxLeave this checkbox selected
ValidationsMatch a specific pattern checkboxLeave this checkbox selected, and use the dropdown to select the URL pattern. Write "Input value does not match the expected format." in the Custom error message field.

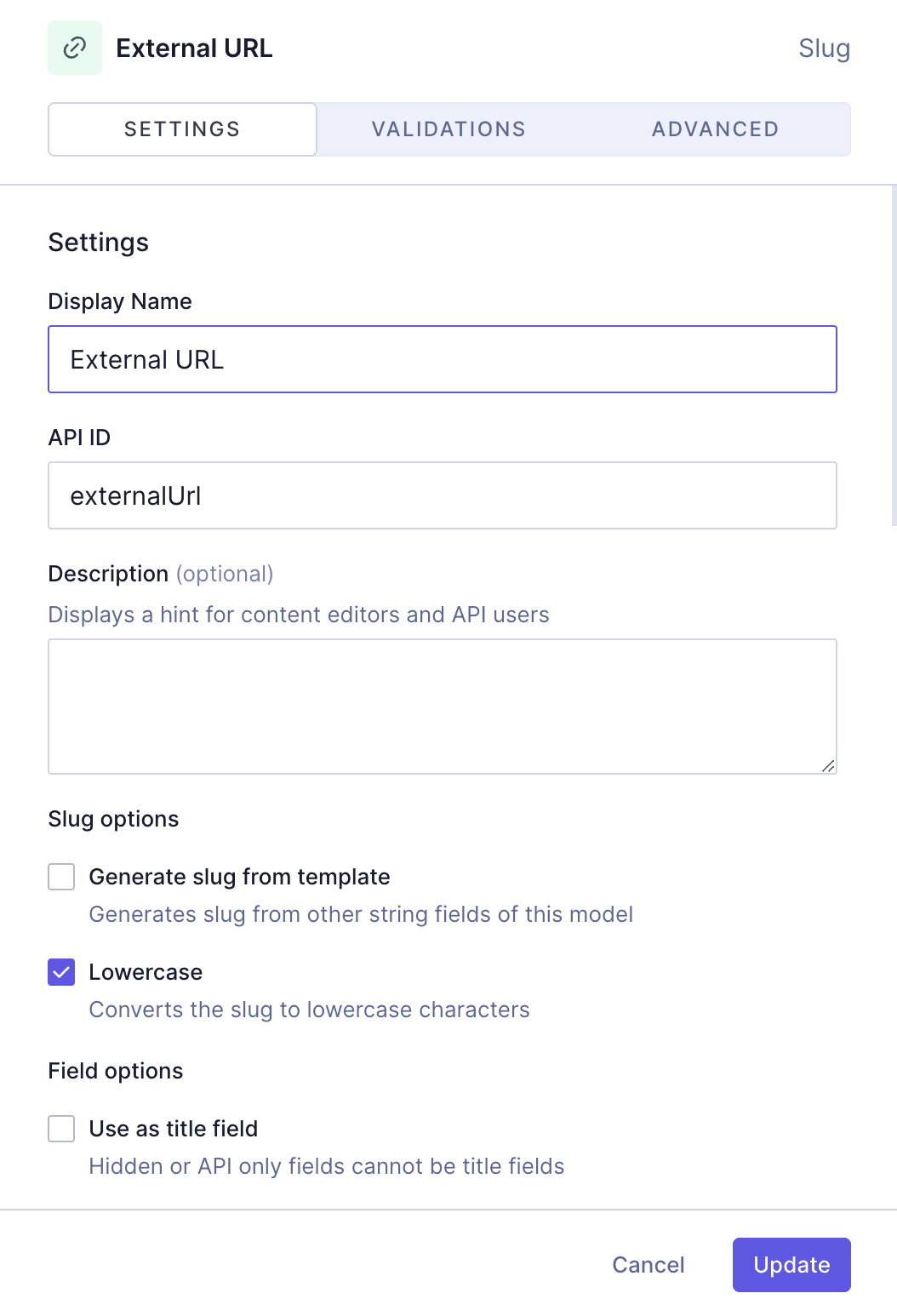

Link component - External URLLink component - External URL

We'll click Add to save.

#3. Add fields to the Navigation model

We'll go back into our Simple Navigation model now, to add fields to it. The reason we're creating this navigation as a model, is so that we can then create an entry per navigation that we want to build using this configuration.

First, we will add a slug field that will be our navigation ID. We'll click on the Slug field in the Add fields right sidebar and use the following information:

TabFieldInput
SettingsDisplay NameNavigation ID
SettingsAPI IDnavigationId
SettingsLowercase checkboxLeave this checkbox selected
SettingsUse as title field checkboxSelect this checkbox
ValidationsSet field as unique checkboxLeave this checkbox selected
ValidationsMatch a specific pattern checkboxLeave this checkbox selected, and use the dropdown to select the Slug pattern. Write "Input value does not match the expected format." in the Custom error message field.

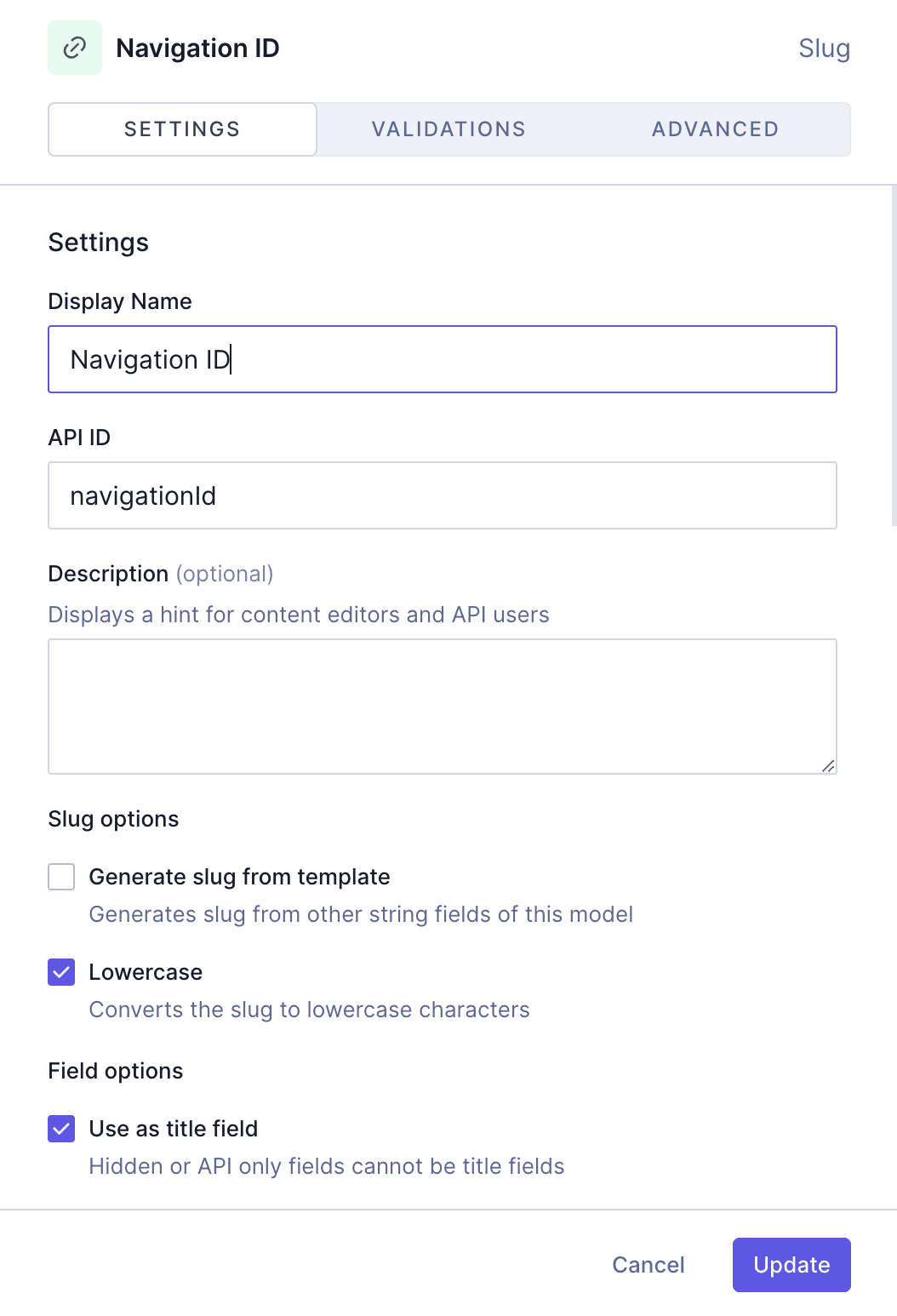

Simple navigation - IDSimple navigation - ID

We'll click Add to save.

Now it is time to add the link component that we created earlier. We'll click on the Basic component field in the Add fields right sidebar and use the following information:

TabFieldInput
SettingsDisplay NameNavigation links
SettingsAPI IDnavigationLinks
SettingsAllow multiple values checkboxSelect this checkbox
SettingsSelect componentUse the dropdown to select the "Link" component

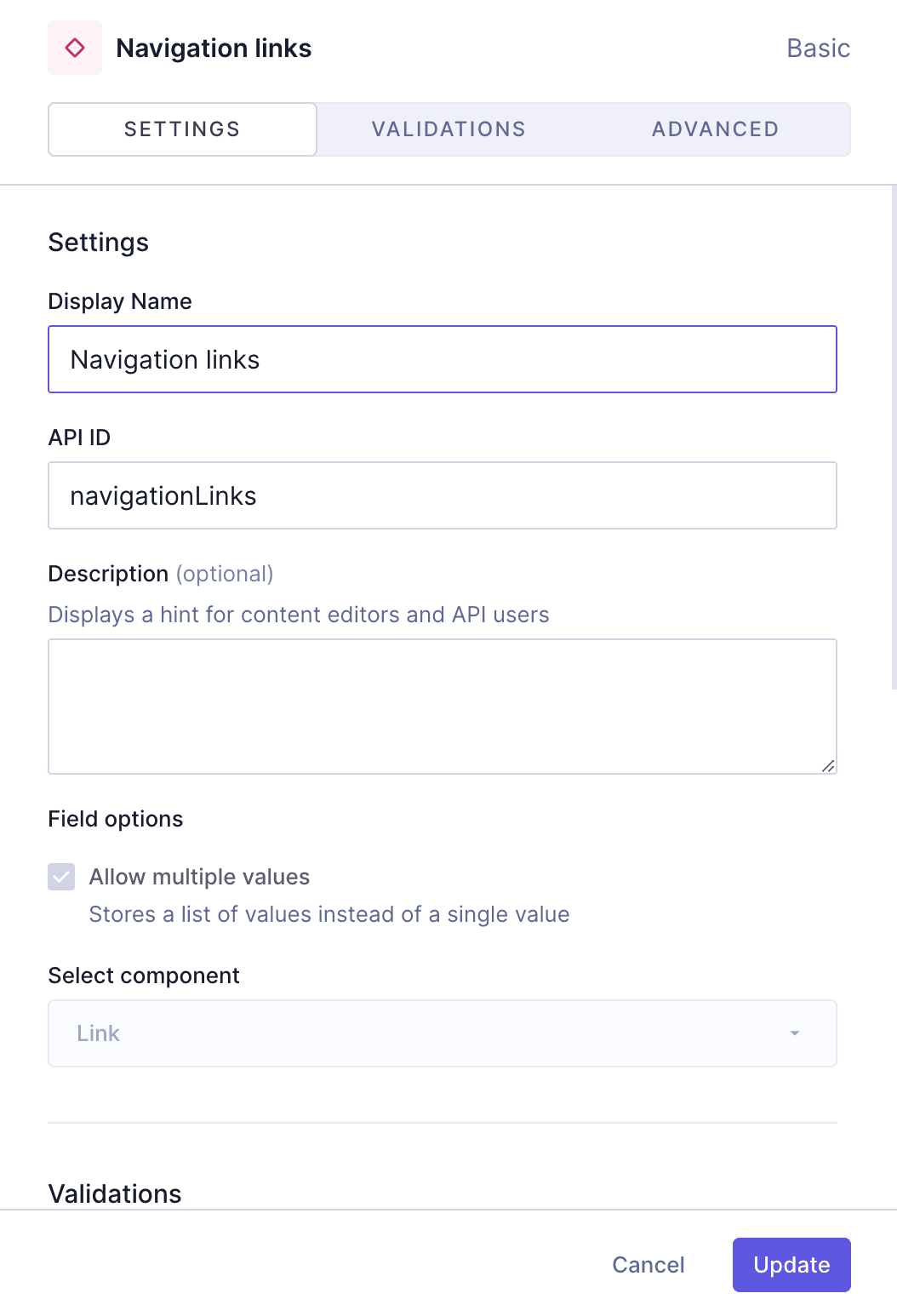

Simple navigation - Link componentSimple navigation - Link component

We'll click Add to save. In this case, we've allowed multiple values so that we can add as many links as we want to our navigation.

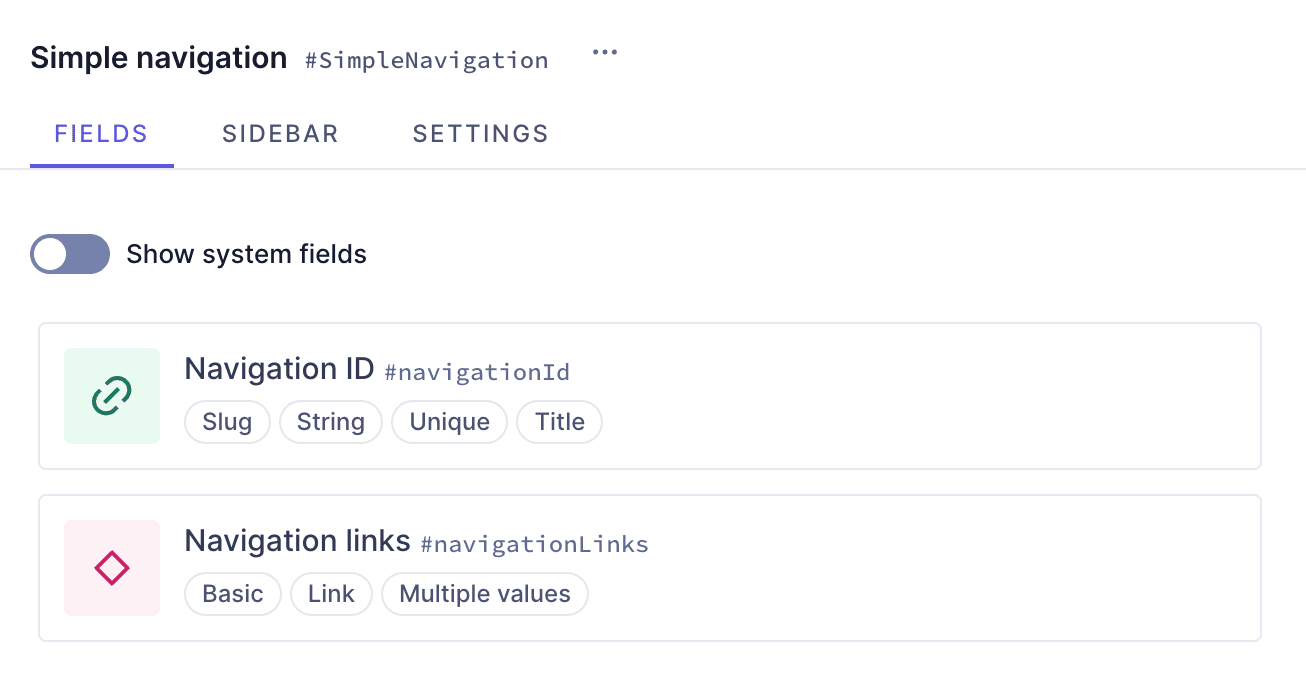

Simple navigationSimple navigation

This guide helped you create the schema element yourself. Alternatively, you can clone a project containing all our navigation recipes.

Check out the next document section for that!

#Clone project

We have prepared a project that contains the entire Navigation cookbook:

Clone this project

This cookbook contains all the recipes we have so far to create navigation elements, so you can compare the different navigation configurations without having to clone multiple projects.

To find this particular recipe in the cookbook project, navigate to the schema and look for "Simple Navigation".
