Components

#Overview

A component is a pre-defined set of fields that can be reused across models and content entries. You can think of a component as a flexible, reusable template where you define the fields that will be used inside a component once, and then fill them with different content every time you use it in a content entry.

#What you can do

You can create components as templates to reuse in your schema. This saves time and declutters your content creation screen.

#Important concepts

• Component: a pre-defined set of fields that can be reused across models and content entries. You can think of a component as a flexible, reusable template: you define the fields that will be used inside a component once, and then fill them with different content every time you use it in a content entry.

• Component instance: a specific occurrence of the component type, containing content, inside a content entry. While there is no limit to the number of component instances that you can add to a component field yet, you will only be able to see the first 50 in the UI.

• Component field: a special field type in your Hygraph schema that defines which components of which type can be used in a model. Component fields can be of basic or modular types.

  • Basic component field: a basic component field can only have one component attached to it. You can limit the number of component instances to one, or allow multiple component instances to be added in the content entry.

  • Modular component field: a modular component field can have two or more components attached to it.

    Both Basic and Modular component fields can be configured to allow multiple values. If multiple values are allowed for a component field, this field will allow for multiple component instances to be added to a content entry.

• Nested components: functionality that allows you to create components within a component, as if you had a parent component containing one or more child components.

#Adding a component to your model

The process of adding a component to your model involves two major steps: creating a component and adding it to your model using a component field.

#Creating a component

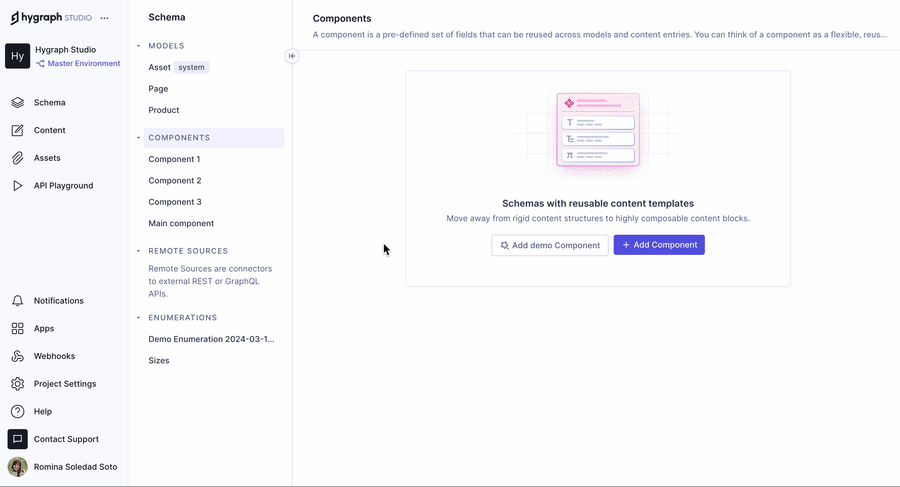

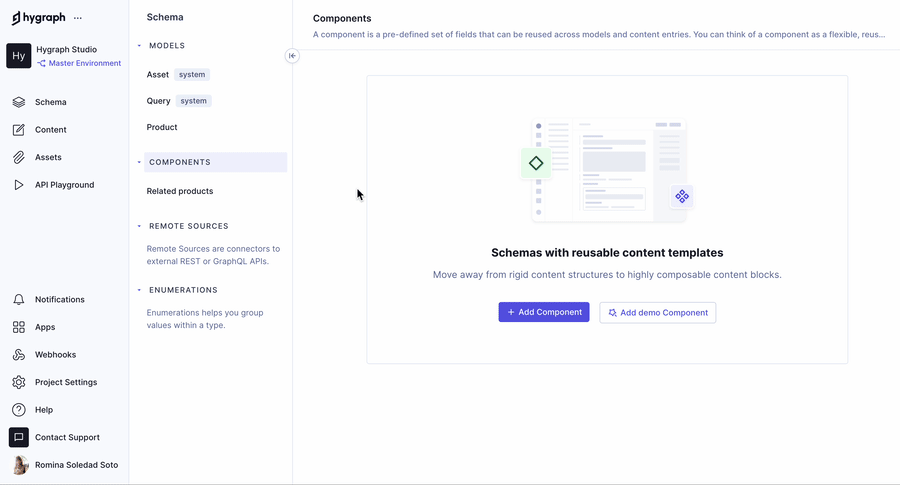

Creating a component

1. Navigate to the Schema builder.

2. In the left sidebar, find the Components section below your Models and click +Add.

3. Add the name of your component in the Display name field. The system will autocomplete the API ID and Plural API ID fields, but you can edit these values if you need to.

4. Click Create component to save.

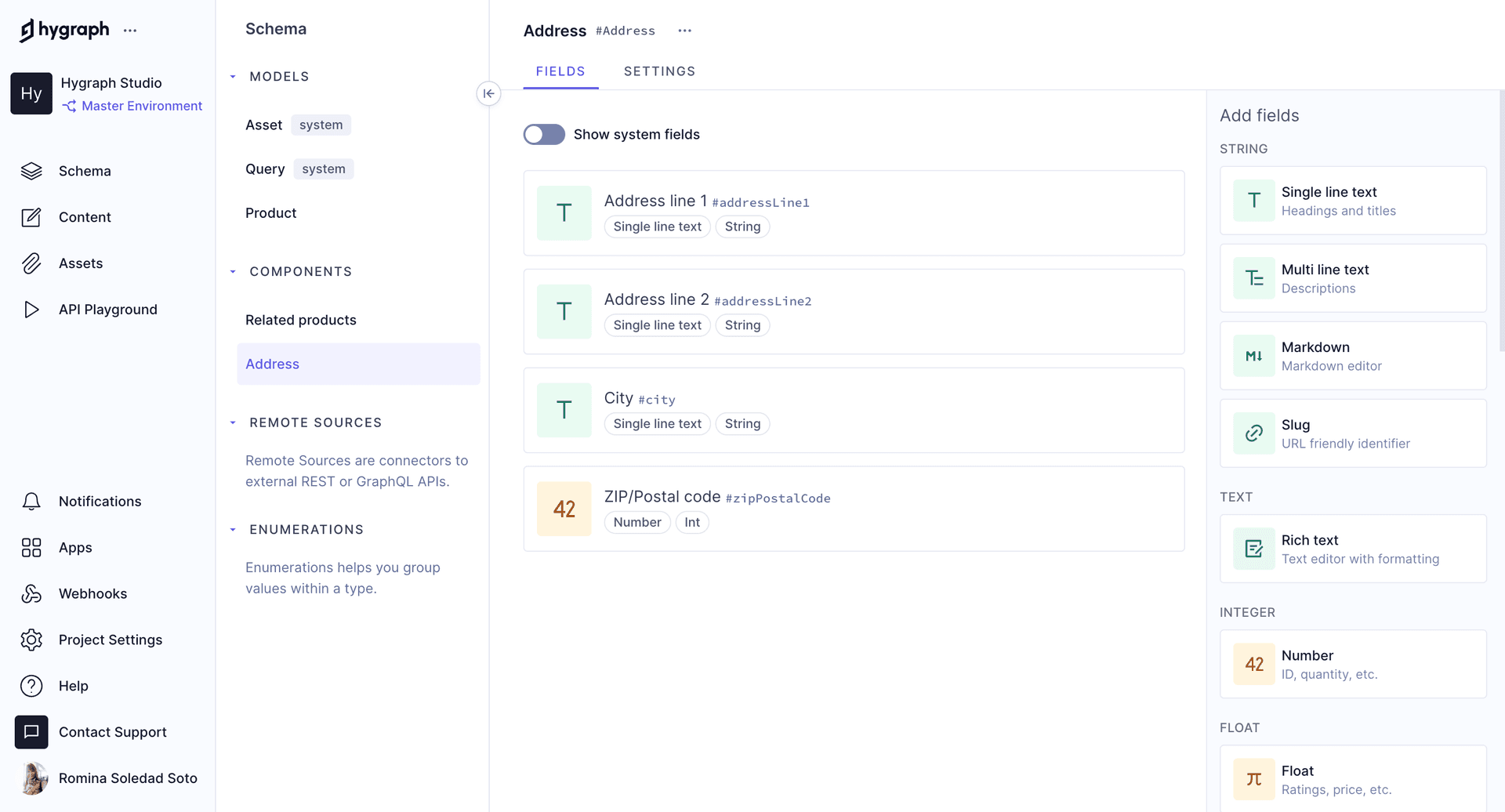

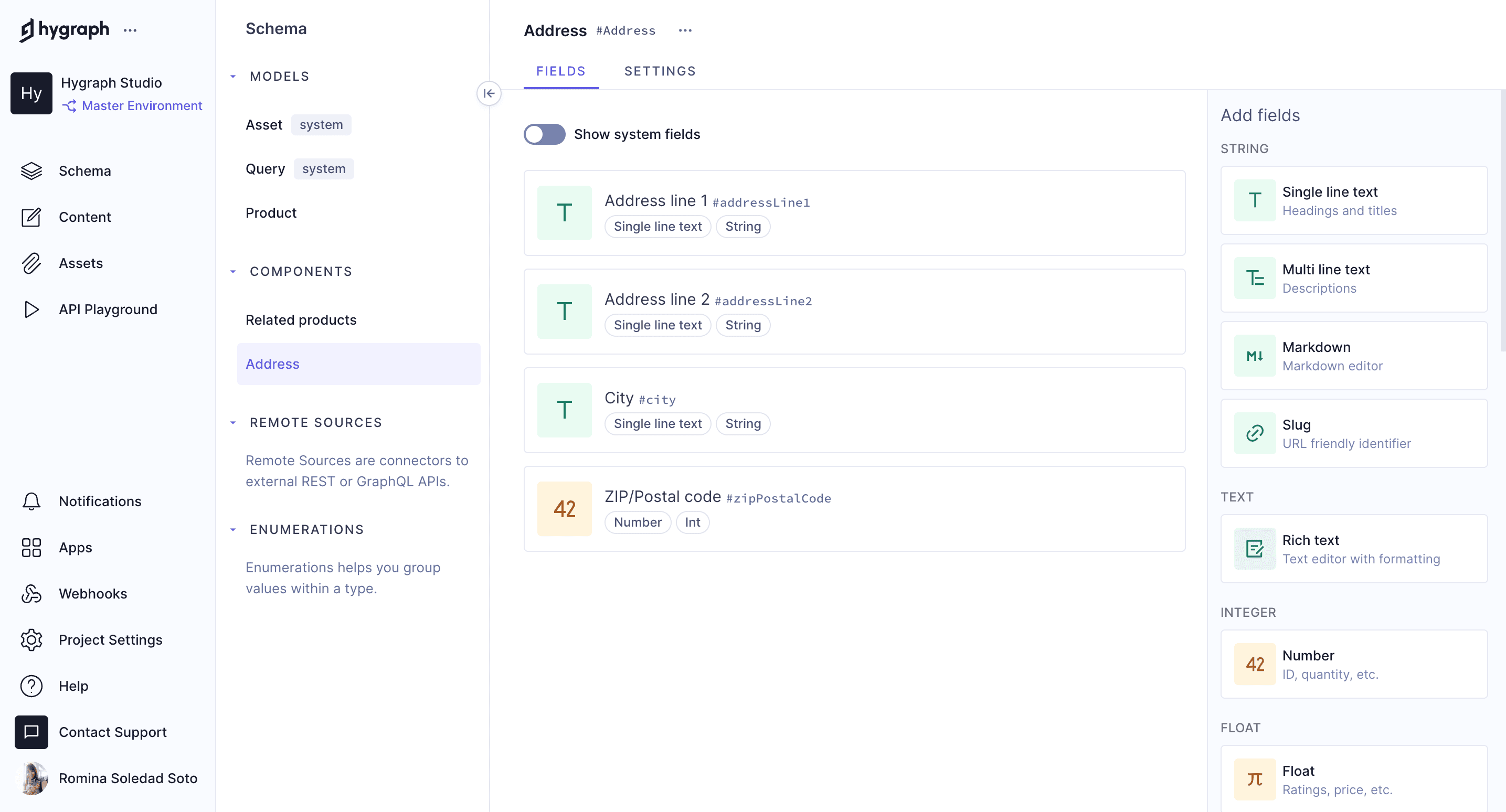

5. Your newly saved component is empty at the moment. You can add different fields to it. For example, we can create an Address component containing single-line text fields for the Address lines and City, as well as a number field for ZIP code.

   Creating a component

#Adding a component field to your model

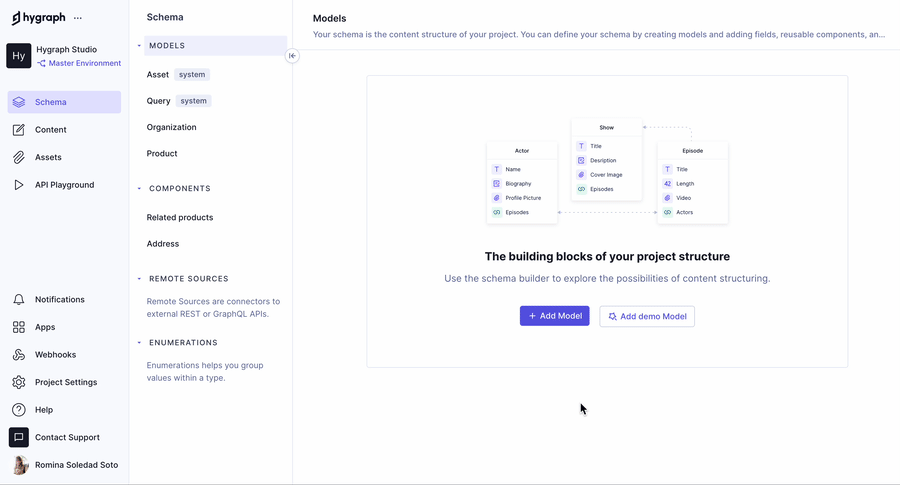

Adding a component field to a model

1. Navigate to the Schema Builder, and then to the model that you want to add a component to.

2. Select a Basic component field or a Modular component field from the Add fields right sidebar. You can learn about the differences between them here.

3. Type in the Display name of your component field. The system will autocomplete the API ID and Plural API ID fields, but you can edit these values if you need to. Optionally, you can also add a Description.

   Pro Tip

   This screen allows you to control different properties of your component field: you can allow multiple component instances to be added by allowing multiple values, or you can make this field required in the Advanced section.

4. If you're adding a basic component field, use the Select component dropdown to pick the component for the component field. If you're creating a modular component field, the dropdown reads Select allowed components instead, as you can select more than one component for this field type.

5. Click Create to save.

#Nested components

The nested components functionality enhances how you can reuse and edit your models by allowing you to add component fields to a component.

Using nested components you can have a parent component where one or more child components are nested. This would allow you to, for instance, create a section and a subsection component, and then embed one into the other.

How to use nested components

1. Create your components, or use the ones you've already created.

2. Add either a basic or modular component field to the component you wish to add the nested component to. You will find them on the Add fields right sidebar.

   Keep in mind that, when you add a component field, the options offered when selecting the nested components are other components already created. So make sure you have created the components you need before doing this.

3. Fill in the required information in the Create field screen in the same way you did for step 3 of the Adding a component field to your model process.

4. Select the component you wish to nest into the current one from the Select components dropdown at the bottom of the screen if it's a basic component field, or the Select allowed components dropdown if it's a modular component field.

5. Click Create.

As a result, your new nested component field is now displayed on the fields list of the parent component.

#Using a component in a content entry

After adding a component to your model, you can go to the Content Editor to test it. The video above shows how to work with four possible component field configurations:

• Basic component field that does not allow multiple values
• Basic component field that allows multiple values
• Modular component field that does not allow multiple values
• Modular component field that allows multiple values

In general, component fields work as follows:

1. In the Content editor, click on the model you configured the component for and click + Add entry. You will find your component field in the content entry.
2. If it's a basic component field, click the +Add component button, if it's a modular component field, select a component from the drop-down menu. You've just created your first component instance! Now it's time to add some content to this instance.
3. If you previously selected Allow multiple values on your component field's parameters, you will be able to add more than one component instance by using the +Add another component button, or by using the context menu and selecting Add component below or Add component above. If your component field doesn't allow multiple values, then you can only add one component instance.
4. You can also remove and reorder your component instances using the context menu or the directional arrows next to it. The Remove all option at the top removes all component instances at once.

#How to use nested components

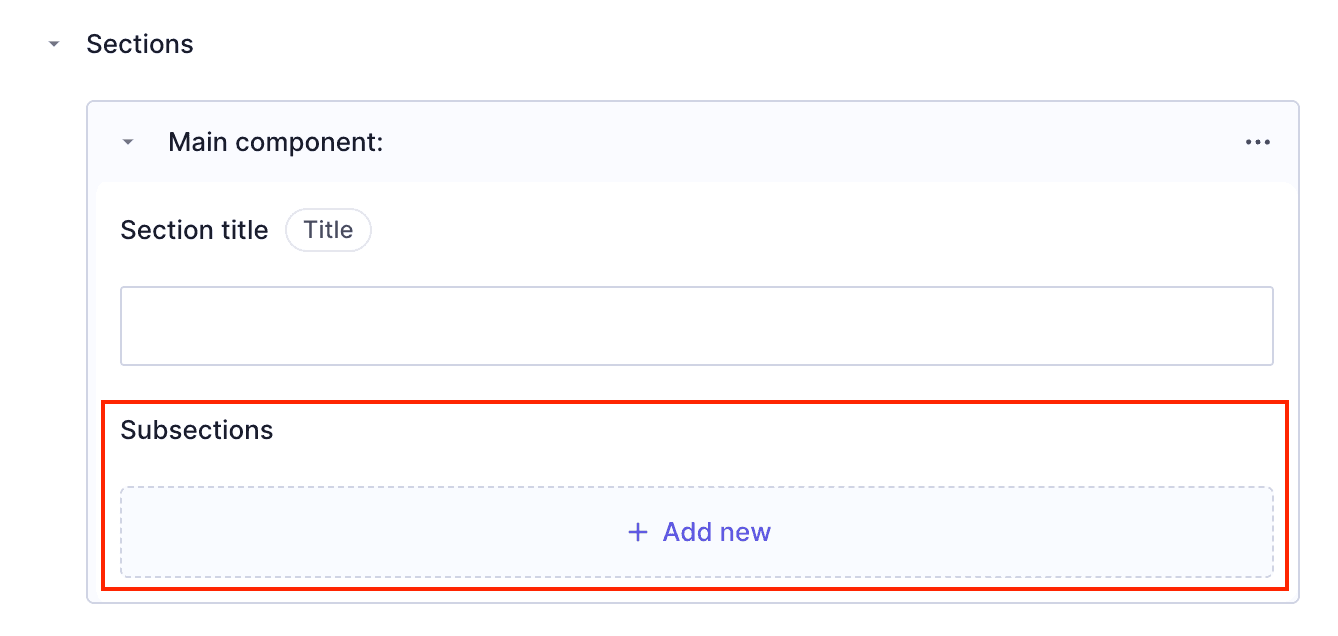

After creating a nested component at the schema level, you can go to the Content editor and create a new entry, where you can add the newly created nested component as a subsection of the component you added it to.

Add nested components

#Querying components

After a component field has been configured, it's added to the Hygraph schema and becomes immediately queryable through the API. Press CTRL+Space or open the Explorer view to see the available fields inside the model that contains a component field.

Basic component fields are queried in the same way, as you would query regular fields inside your models. In the example below, a user has a page model with a basic hero component field that has cta, description and heroImage fields. Here's an example of a query with this setup:

query basicComponent {
  pages {
    id
    title
    mainText
    hero {
      #note that in the case of basic components, we're only using the component field's API ID, and we don't need to use the API ID of the component itself
      cta
      decription
      heroImage {
        url
        height
        width
      }
    }
  }
}

The query above will return a result like this:

{
  "data": {
    "pages": [
      {
        "id": "cl120a7gvu57b0bt3qw4xiv86",
        "title": "Open positions at Hygraph",
        "mainText": "Follow this link to see all of the open positions - https://jobs.hygraph.com/",
        "hero": [
          {
            "cta": "Explore vacancies!",
            "description": "There are a huge variety of positions to be filled now",
            "heroImage": {
              "url": "https://media.graphassets.com/OIi5LuhxTTOm1M2bDS9N",
              "height": 480,
              "width": 640
            }
          },
          {
            "cta": "Apply right now!",
            "description": "The application process is nice and smooth",
            "heroImage": {
              "url": "https://media.graphassets.com/bAEFpGV2S2WxiuzYcV6R",
              "height": 427,
              "width": 640
            }
          }
        ]
      }
    ]
  }
}

Modular component fields are union types “under the hood”, so querying works the same way as with relations and unions. In the example below, a user has a blogPost model with some regular fields, such as id, title and mainText, as well as the modular additionalSections component field. The modular component field has two different components: Contributor and VideoBlock. To query the two components inside the modular component field, we're going to use ... on Contributor and ... on VideoBlock, as we would do with a regular union type:

query modularComponent {
  blogPost(where: { id: "cl11z0rctt6g80bt3anxt7c11" }) {
    id
    title
    mainText {
      markdown
    }
    categories {
      categoryName
    }
    additionalSections {
      __typename # if you have multiple component instances, it's recommended to use __typename to know which fields belong to which component instance.
      ... on Contributor {
        id
        name
        jobTitle
      }
      ... on VideoBlock {
        id
        title
        description
        youTubeEmbedUrl
        autoplay
      }
    }
  }
}

This query will return something like this:

{
  "data": {
    "blogPost": {
      "id": "cl11z0rctt6g80bt3anxt7c11",
      "title": "Berlin in spring",
      "mainText": {
        "markdown": "The best time to visit the German capital is the end of April\n"
      },
      "categories": [
        {
          "categoryName": "General"
        }
      ],
      "additionalSections": [
        {
          "__typename": "VideoBlock",
          "id": "cl11z858dt6te0ftjxi5ucvwx",
          "title": "Spring in Berlin",
          "description": "Watch this video for some travelling inspiration",
          "youTubeEmbedUrl": "<iframe width=\"560\" height=\"315\" src=\"https://www.youtube.com/embed/aWBGxt38o4s\" title=\"YouTube video player\" frameBorder=\"0\" allow=\"accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture\" allowFullScreen></iframe>",
          "autoplay": false
        },
        {
          "__typename": "Contributor",
          "id": "cl11z0rdbt6g90bt3eud9anlj",
          "name": "Daniil",
          "jobTitle": "Editor"
        }
      ]
    }
  }
}

#How to decide between components and references?

Components are somewhat similar to references (relations) because in both cases something gets reused. The important difference is that in the case of components, only the set of fields without any content gets reused, whereas in the case of relations, already existing content entries get reused.

Let's use an example of an Author component. Authors can be attached to a content entry using either components or relations.

In the case of relations, you need to create your Authors first, in a separate model, and then reuse these content entries by attaching them to a post using the relation field. This works well if you have a small team of authors each of whom has their own Author profile.

In the case of components, you don't have to create Author entries before creating a Blog post content entry. However, every time you add an Author component instance to your post, you will need to fill in all of the fields from scratch. This works well if many different users can be the Authors of your content entries and it doesn't make sense to create an Author profile for each of them.

For more information, check out our document on this subject.

#Conditional components

You can use the Conditional visibility option in a component field so that the component only displays in the content form when needed.

Using conditional visibility is a great way to simplify the way the content form displays when the schema contains deeply nested structures.

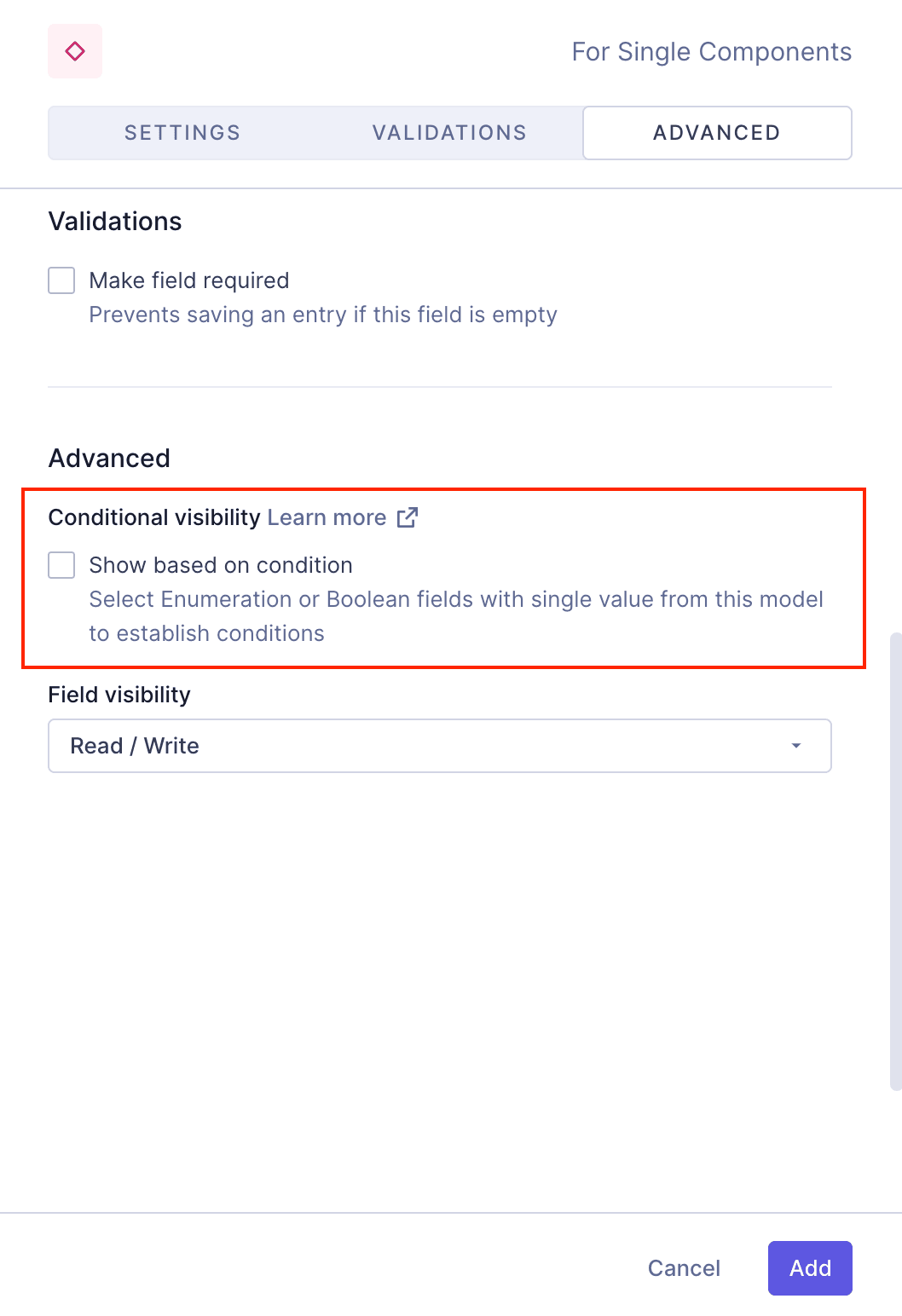

You can find the Conditional visibility checkbox in the Advanced section of your components configuration screen:

Conditional components

Check out this document to learn how to set up conditional visibility.
