Connect your Hygraph project to Smartling

Smartling is a cloud-based language translation and content localization tool that offers translation services as well as AI powered translations.

#What you can do with the Hygraph-Smartling integration

  • Teams can simplify their workflows between Smartling and Hygraph by submitting & importing content.
  • Teams can easily manage multiple locales for their digital products through a dedicated interface within Hygraph.

#Prerequisites to use this integration

  • You must have a Hygraph account. If you don't have one, you can create one here.
  • You must have a Hygraph project.
  • You must have a Smartling account. If you don't have one, you can book a meeting with their team.
  • You must have a Smartling project. Check out Smartling Help Center to find out more about how Smartling works.
  • You must create a Smartling project and have the following information at hand:
    • User ID: Generate this by clicking on Account settings, located on the upper right corner of the screen - by your user menu - then select the API option. Find the Account tokens section of the screen and click on the Create Token button. Finally, assign a name to your token and click on Create. Your User ID is the Token Name. Copy this information, as you won't be able to access it afterwards.
    • User Secret: Generate this by clicking on Account settings, located on the upper right corner of the screen - by your user menu - then select the API option. Find the Account tokens section of the screen and click on the Create Token button. Finally, assign a name to your token and click on Create. Your User Secret is the Token Secret. Copy this information, as you won't be able to access it afterwards.
    • Project ID: Find this by clicking on Account settings, located on the upper right corner of the screen - by your user menu - then select the API option. Find the Project tokens section of the screen. You can copy the Project ID of an existing project, or generate a new one by clicking on Create Token.

#Install the Smartling app

Click here to install the Smartling App on Hygraph, then follow these steps:

  1. In the dropdown, select which project you want to install the app in, then click on the Add App button. You should be redirected to your Hygraph project dashboard.
  2. Fill in the User ID, User secret, Project ID. This information can be found in your Smartling account. The Hygraph UI provides a link with information on how to get them right under the Smartling banner. We also provided information on this in the Prerequisites section of this document.
  3. Select at least one translatable model to use Smartling in. This information can be edited later by going to the Apps section of your Hygraph project, then clicking on the pencil icon in the Smartling card to edit the details.
  4. Map the locales by using the dropdown menu to select a Smartling locale to match your Hygraph locale. This information might take a few seconds to load after entering a Project ID.
  5. Click on the Save button.

#Use Smartling in your Hygraph project

As you create content, it will display in the Smartling view of the Content editor, under App views. From there, you will be able to submit content to Smartling to be translated, then import those translations into Hygraph.

Finally, after the process has been completed, you will be able to view the translated content normally by accessing the Content editor.

Take into account that only localizable fields can be submitted to Smartling. So the fields must be set as localized fields when added to the model.

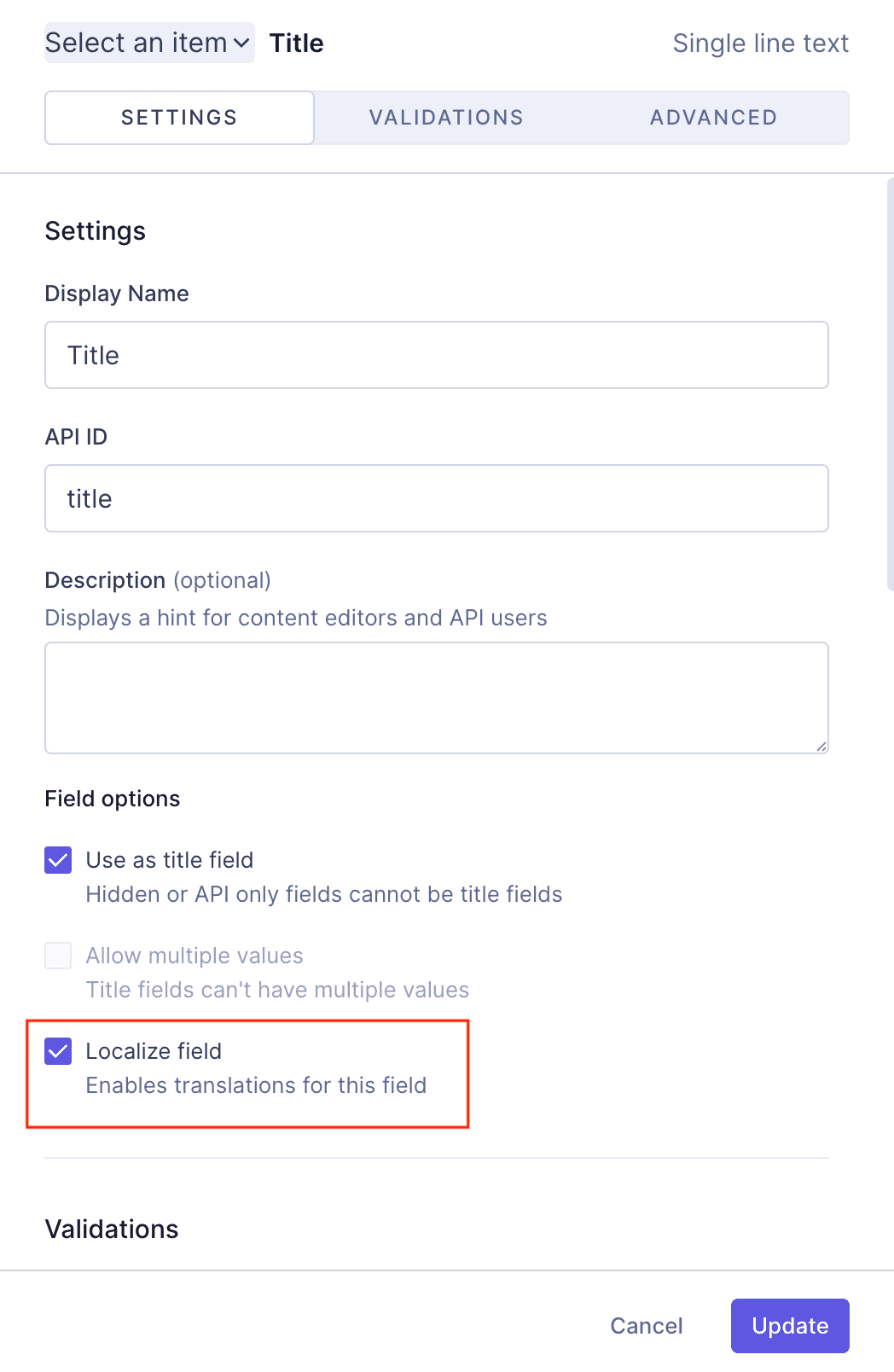

Localized field checkboxLocalized field checkbox

You will find the Localize field checkbox at the bottom of the field details screen, which displays when you create or edit a field in the Schema editor.

#Submit translation

  1. Navigate to the content editor.
  2. Select Smartling under the App views section of the right sidebar.
  3. Use the checkboxes to select the content you want from the list, and send it to Smartling by clicking on the Submit to Translate link at the top of the table. Content that has not been translated has the Missing status.
  4. A pop-up will display, where you need to select the job and locales to submit.
    • Job: Use the radio buttons to create a new job, or the dropdown menu below it to select an existing one.
    • Locales: Use the checkboxes to select locales.
  5. After clicking on Submit, the translation status will change to In progress, and you will be able to find the content ready to translate in your Smartling account.

If the content is exported successfully, a green message will pop up on the lower right corner of the screen indicating this. If it fails, a red message will be displayed in the same place indicating that the process was unsuccessful.

The following fields are supported to be submitted to Smartling:

  • Single-line text
  • Multi-line text
  • Markdown
  • Richtext
  • Slug

Translation submissions are also supported for Basic and Modular Components, but only for the supported field types.

#Import translation

After submitting content to Smartling, it will be ready for translation there. Once translated, you can then import that content back to Hygraph by following these steps:

  1. Navigate to the Smartling app view in the Content editor. Use the checkboxes to select the entries that you want to import translations for, then click on the Import Translation link at the top of the table.
  2. A pop-up will display, where you need to select the language or languages of the content being imported, then click on Import translation. For the translation status to change to Done, the job needs to be submitted to the next step in the Smartling workflow.

The following fields are supported to be imported from Lokalise:

  • Single-line text
  • Multi-line text
  • Markdown
  • Richtext
  • Slug

Import is also supported for Basic and Modular Components, but only for the supported field types.

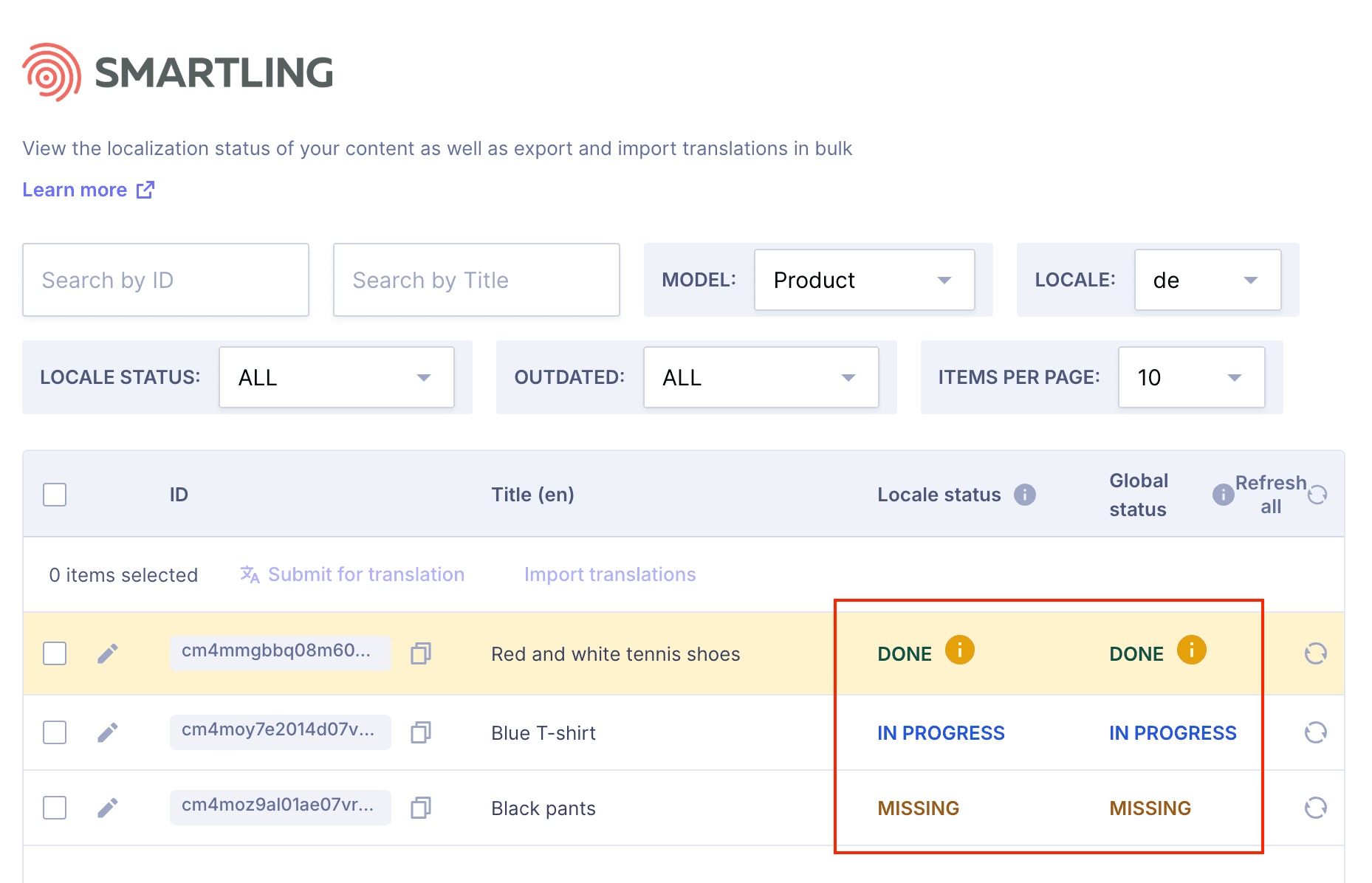

#Translation statuses

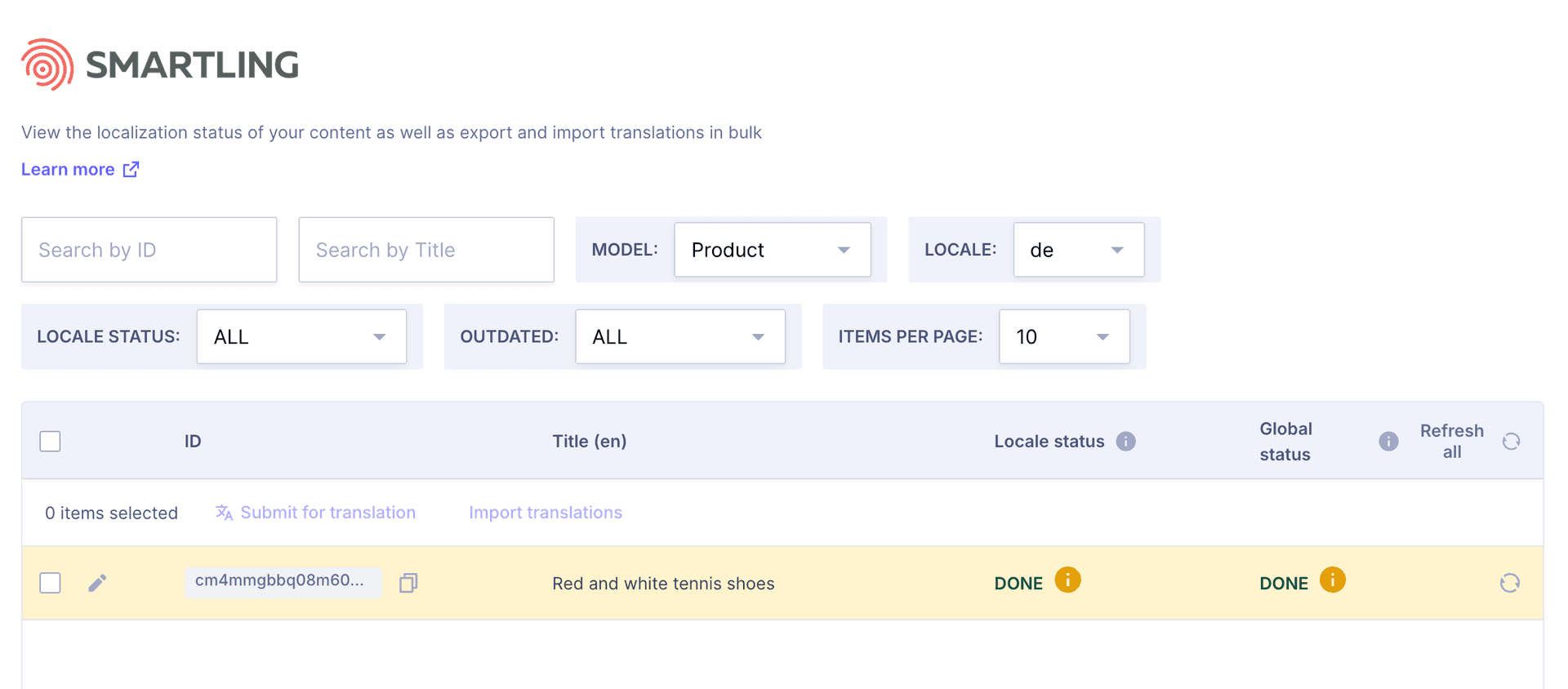

The Smartling app view of the Content editor contains a form that allows you to view the localization status of your content as well as to submit and import translations in bulk.

Smartling secton in App viewSmartling secton in App view

Your Locale status refers to the default language in your project. The language will be indicated next to the Title, for instance Title (en).

Your Global status refers to all the languages that were submitted for translation.

StatusDescription
MissingIndicates that an entry has never been sent to Smartling.
In progressIndicates that an entry has been submitted for translation.
DoneIndicates that the translation has been finished in Smartling and has moved on to the next step in the workflow.

#View translations

  1. Navigate to the content editor, and select the view of the model you configured Smartling for.
  2. Edit an entry that you imported a translation for by clicking on the pencil icon. The content will display at the center of the screen.
  3. You will find the Localizations section in the right sidebar. You have the following options:
    1. Click on the + icon to add a translation.
    2. Click on the trash icon to delete a translation.
    3. Click on the eye icon to visualize a translation in the editor.

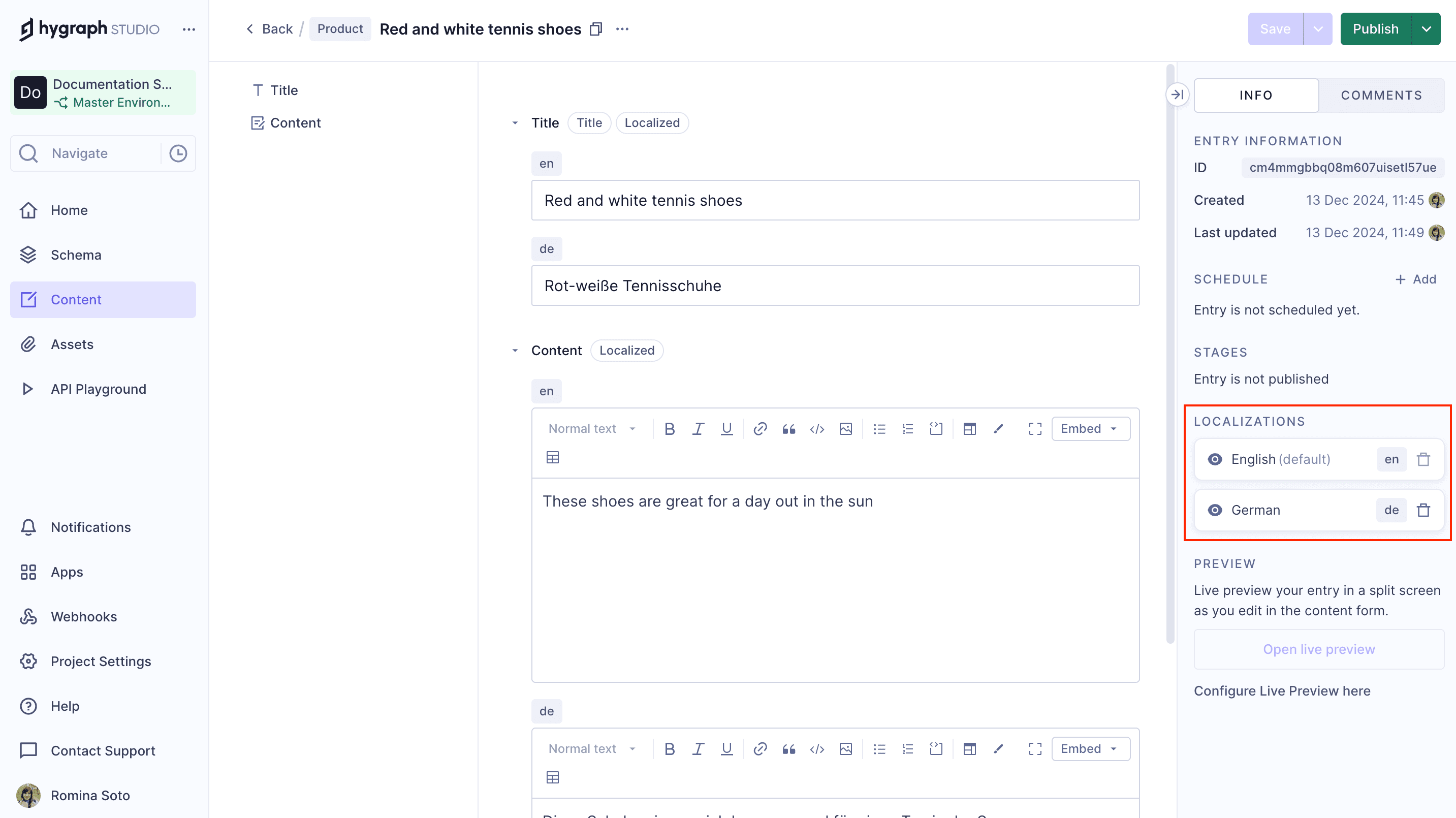

View translationsView translations

#Troubleshooting

If the Content Editor displays the message This model has no localized fields under localizations in the sidebar, while the Schema has localizations configured, go to Project settings > Locales and make sure your project has at least two languages configured.

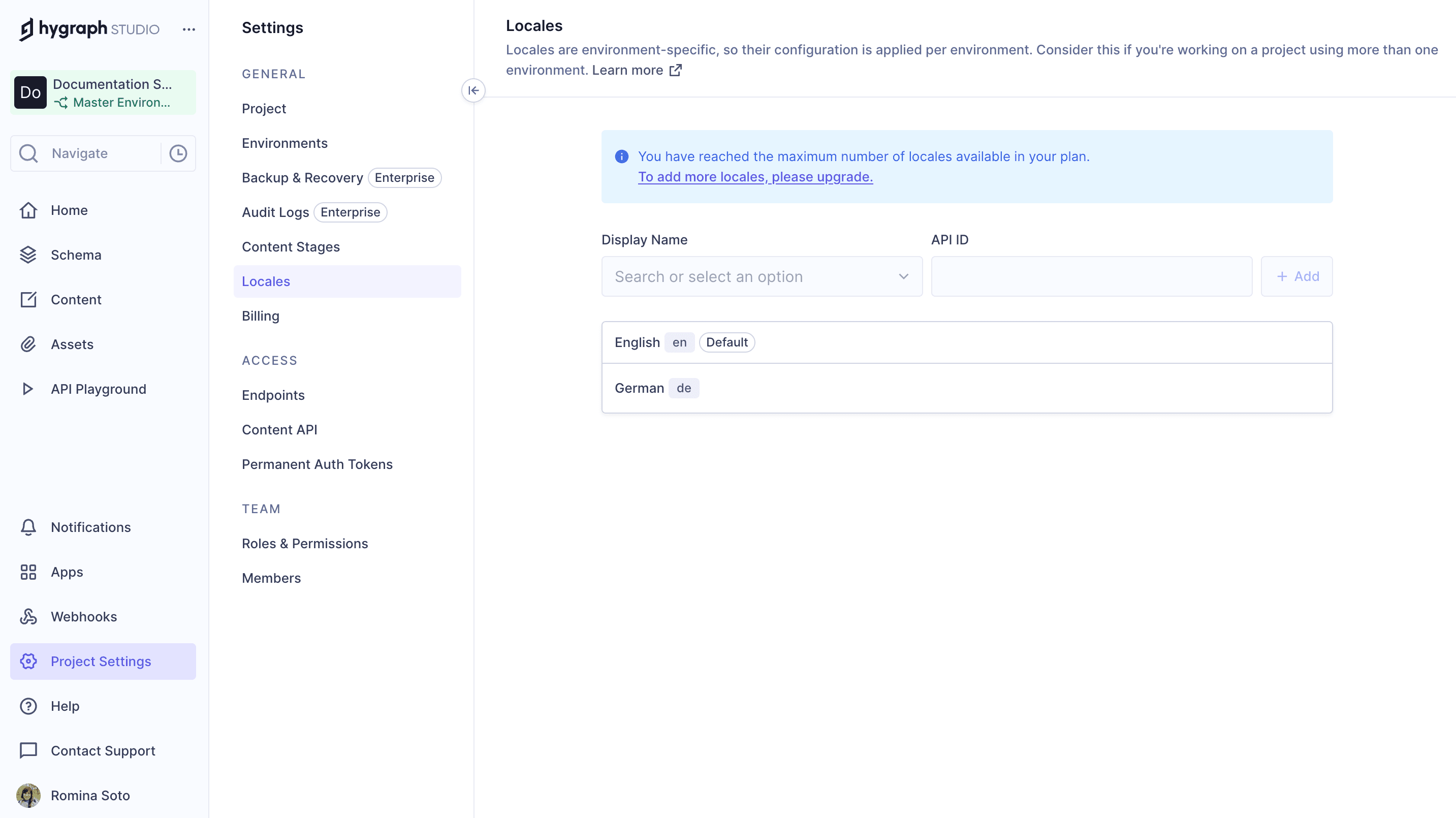

Locales in project settingsLocales in project settings

If you have only one language configured there, select another language for localizations using the Display name dropdown, then click on Add.
