GraphQL

Variables

In this tutorial, we will look at GraphQL variables, how to use them in queries and mutations, different variable types, and assigning default and required variables.

One feature that makes GraphQL more flexible and powerful is its support for variables. By the end of this tutorial, you should have a solid understanding of how to use variables in GraphQL effectively and take advantage of their benefits.

Getting Started

Before diving into variables, we must set up our environment. For this tutorial, we will be using the Hygraph Commerce Shop template. You can clone this template and retrieve your GraphQL endpoint by following these steps:

Sign up for a Hygraph account and log in to the dashboard. Select the Commerce Shop Template and follow the prompts to create your project. Once your project is created, navigate to the Project settings section in the dashboard and copy your Content API endpoint.

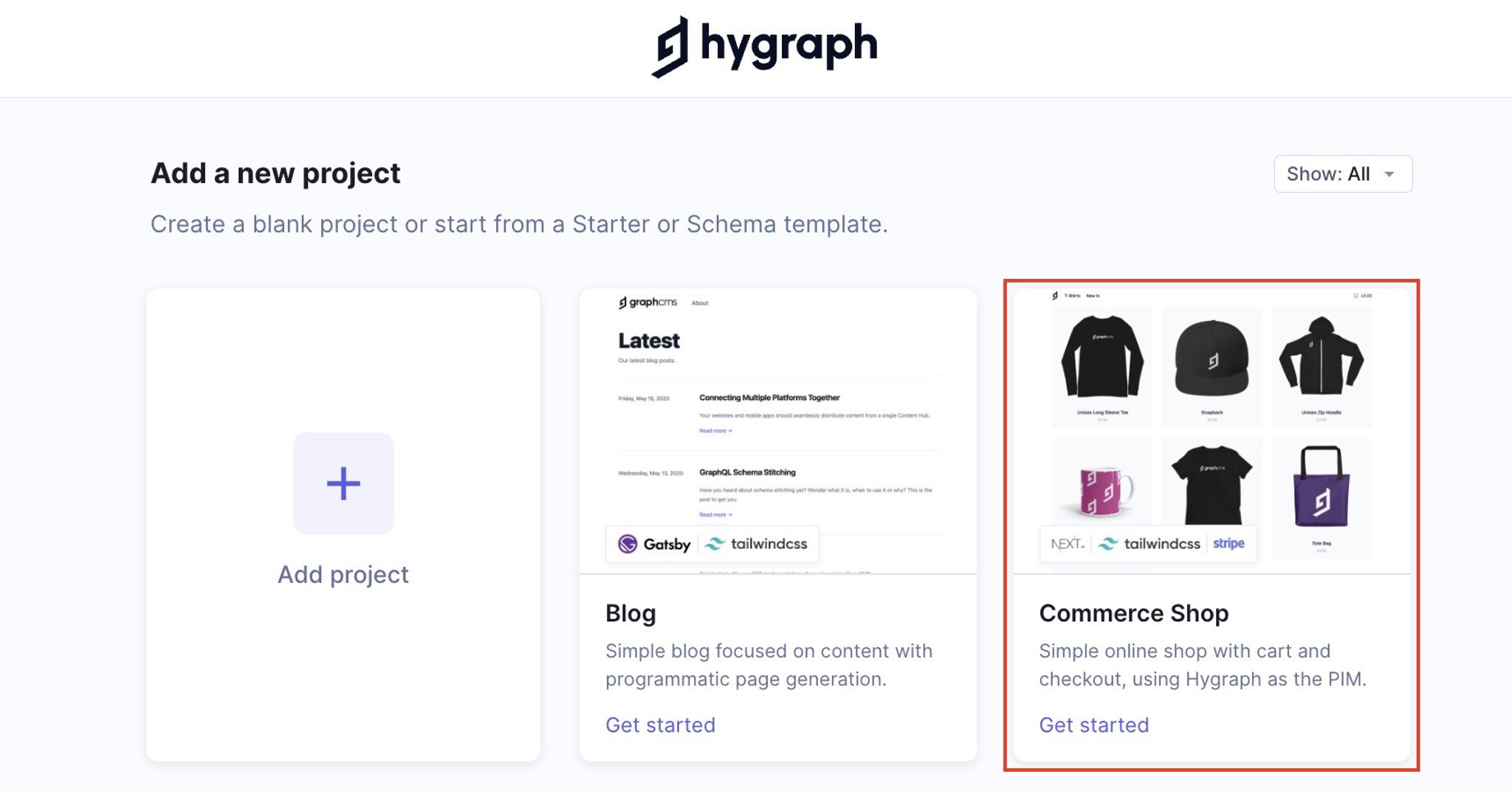

ecommerce template in hygraph

With our Hygraph Commerce Shop project set up and our GraphQL endpoint retrieved, we are ready to explore variables in GraphQL.

How to Use Variables in GraphQL

Variables allow you to dynamically pass values to your queries and mutations, thereby enhancing the power and efficiency of these operations.

Syntax and Structure of GraphQL Variables

GraphQL variables are defined using the $ character, followed by a name and a type. For example, to define a variable for the email field of an order list, we would use the following syntax:

query ($email: String) {
orders(where: {email: $email}) {
id
email
stage
total
}
}

We would then provide a value for the variable when we execute the query. For example, to retrieve all orders with the email address john@doe.com, we would provide the following value for the email variable:

{
"email": "john@doe.com"
}

The exact way to pass variables in a query depends on the GraphQL client library that you are using. For example, if you are using the Apollo client, you can pass variables as follows:

import { gql, useQuery } from "@apollo/client";
const GET_ORDERS = gql`
query ($email: String) {
orders(where: { email: $email }) {
id
email
stage
total
}
}
`;
const { data } = useQuery(GET_ORDERS, {
variables: { email: "john@doe.com" },
});

Variable Types

GraphQL supports several built-in variable types, including:

  • Int: a signed 32-bit integer
  • Float: a signed double-precision floating-point value
  • String: a UTF‐8 character sequence
  • Boolean: true or false
  • ID: a unique identifier, often used as a primary key

In addition to these built-in types, GraphQL allows custom scalar types to be defined, providing flexibility in the types of values that can be passed as variables. For example, our Hygraph Commerce project custom types like DateTime, which allows date and time values to be passed as variables.

Required Variables

We can mark a variable as required by adding the ! character after its type. If we do not provide a value for a required variable when we execute a query or mutation, the query or mutation will return an error.

Here's an example of a mutation that requires four variables, name, price, description, and slug, while the createdAt field is optional.

mutation createProduct(
$name: String!
$price: Int!
$description: String!
$slug: String!
$createdAt: DateTime
) {
createProduct(
data: {
name: $name
price: $price
description: $description
slug: $slug
createdAt: $createdAt
}
)
}

When executing this mutation, we must provide values for the required variables; otherwise, we will receive an error. However, the $createdAt variable is optional, and its absence won't affect the mutation's execution.

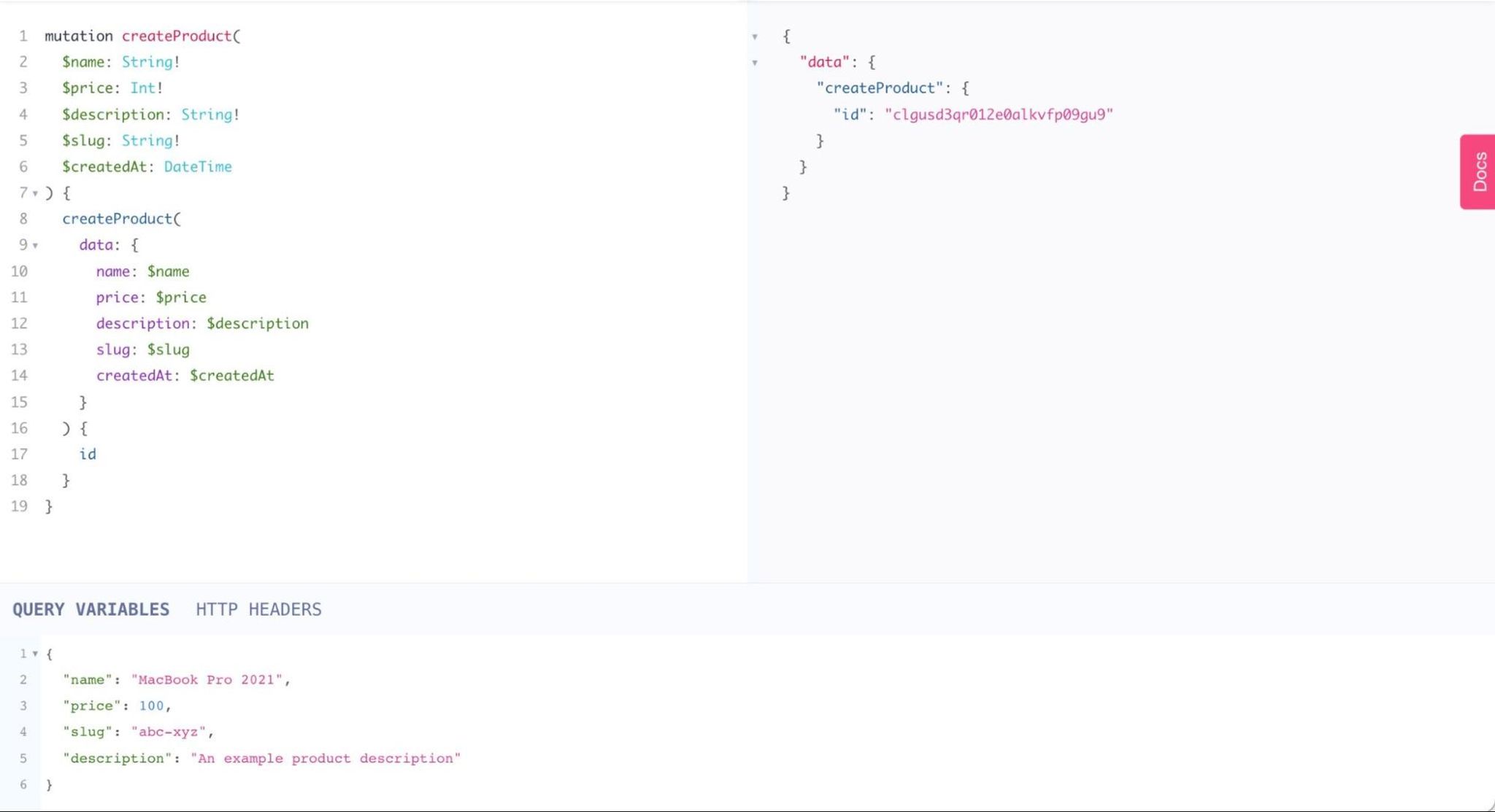

Running the mutation on Hygraph API Playground

Assigning Default Values to Variables

We can also assign default values to variables, which will be used if no value is provided when the query or mutation is executed. To do this, we use the = character followed by the default value.

For example, if we would like to load products with a price greater than 200, we could use the following query syntax:

query ($price: Int = 200) {
products(where: {price_gt: $price}) {
id
name
price
description
publishedAt
}
}

In this query, the where argument is used to filter products where the price field is greater than the value of the price variable. The $price variable has a default value of 200, which means that if no value is explicitly passed during query initialization, the query will always return products with a price greater than 200.

Passing Variables via Hygraph's GraphQL Playground

Hygraph's API playground facilitates testing GraphQL queries and mutations, including the ability to pass variables. To pass variables through this interface, switch to the Query Variables section on the right-hand side, as shown below.

hygraph-s graphql playground.png

Next, enter the variable(s) and their corresponding values in JSON format. For example:

{
"email": "john@doe.com"
}

The values from the "Query Variables" section will be automatically injected into your query or mutation. If any required variables are missing, you will be prompted to provide them before executing the query or mutation.

Conclusion

In this tutorial, we learned GraphQL variables and how to use them in queries and mutations and demonstrated their usage with Hygraph. Using variables can make our queries and mutations more powerful and efficient.
